Detail Information

Ambient Temperature:	-5℃ To +40℃	Coil Voltage:	AC 24/ 36/ 48/ 110/ 220/ 230/ 240/ 380/ 400/ 415/ 440
Pollution Degree:	Class 3	Contact Arrangement:	1NO/1NC
Installation Category:	III	Frequency Rating:	50/60Hz
Mounting Type:	DIN Rail	Current Rating:	6A,9A,12A,16A
Highlight:	AC 110V 3pole magnetic contactor , 48V 24V 3phase electrical contactor , Cjx2-K1610 mini contactor 1NO 1NC

Product Description

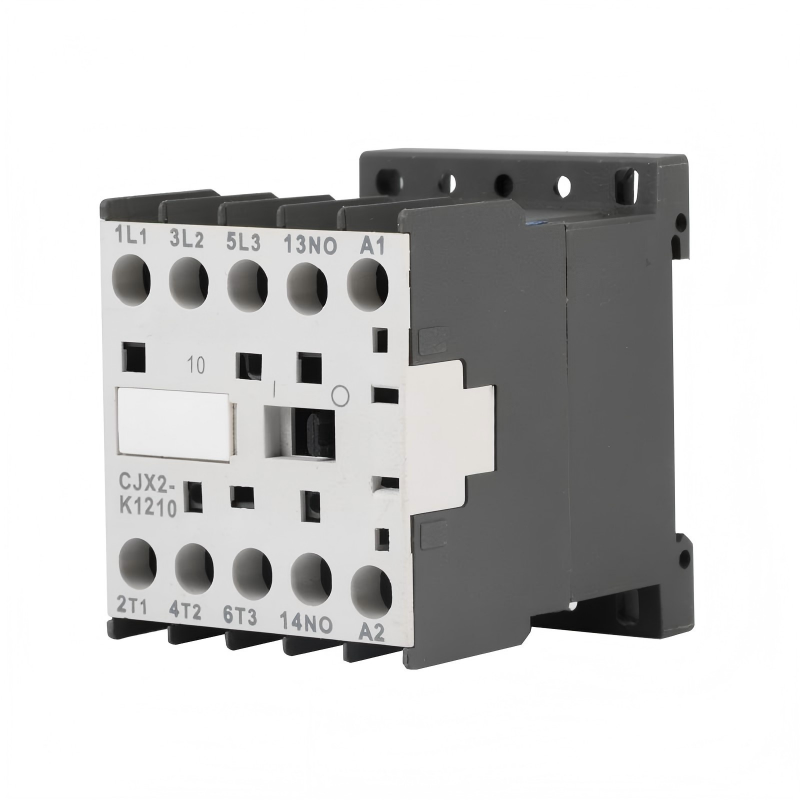

AC 110V 48V 24V Cjx2-K1610 3pole 3phase 1NO Or 1NC Magnetic Electrical Mini Contactor

Product Overview

The CJX2-K series Contactor is a highly reliable and efficient device specifically designed to control and manage electrical power circuits in various industrial and commercial applications.

Key Features

Product Name: CJX2-K series Contactor
Suitable for use as an AC Contactor
Designed for 3 phase contactor applications
Pollution Degree: Class 3, ensuring reliable operation in harsh environments
Contact Material: Available in Silver or Copper for enhanced conductivity and durability
Coil Voltage Options: 24V, 36V, 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 440V
Mounting Type: Easy installation on DIN Rail systems
Ideal choice for 3 phase contactor systems in industrial and commercial settings

Technical Specifications

Type	CJX2-K06	CJX2-K09	CJX2-K12	CJX2-K16
Rated Power kW/HP(AC-3) IEC60947-4-1
200-240V	1.5/2	2.2/3	3/4	4/5.5
380-440V	2.2/3	4/5.5	5.5/7.5	7.5/10
500-550V	3/4	4/5.5	4/5.5	5.5/7.5
660-690V	3/4	4/5.5	4/5.5	4/5.5
Rated Current A(AC-3) IEC60947-4-1
200-240V	7	9	12	16
380-440V	6	9	12	16
500-550V	5	6	7	9
660-690V	4	5	5	5
Conventional Thermal Current Ith:(A)	20	20	20	20
Rated Insulated Voltage Ui:(V)	690
Auxiliary Contact AC-15
Contact Arrangement	Standard: 1NO/1NC		Special: —
Rated Current A (AC-15) 380-440V	0.95
Conventional Thermal Current Ith:(A)	16

Frequently Asked Questions

What are the available models of the Contactor?

The available models of the Contactor are CJX2-K06, CJX2-K09, CJX2-K12, and CJX2-K16.

Where is the Contactor manufactured?

The Contactor is manufactured in China.

What is the minimum order quantity for the Contactor?

The minimum order quantity for the Contactor is 100 units.

What payment terms for purchasing the Contactor?

Accepts T/T (Telegraphic Transfer) and L/C (Letter of Credit).

What applications are suitable for the CJX2-K series Contactors?

The CJX2-K series Contactors are suitable for controlling electric motors, lighting, heating, and other electrical loads in industrial and commercial applications.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	CJX2-K06,CJX2-K09,CJX2-K12, CJX2-K16

Minimum Order Quantity:	100
Packaging Details:	Each unit be packed in one individual inner box
Payment Terms:	T/T,L/C
