Detail Information

Product Name:	Ac Magnetic Contactor	Application:	AC Motor
Type:	Contactor	Coil Voltage:	220V- 690V
Main Circuit Rating Current:	25A	Condition:	100%NEW
Highlight:	85A GMC-75 AC contactor 3Poles , 32A 40A electric magnetic contactor , 220V AC contactor 50/60Hz

Product Description

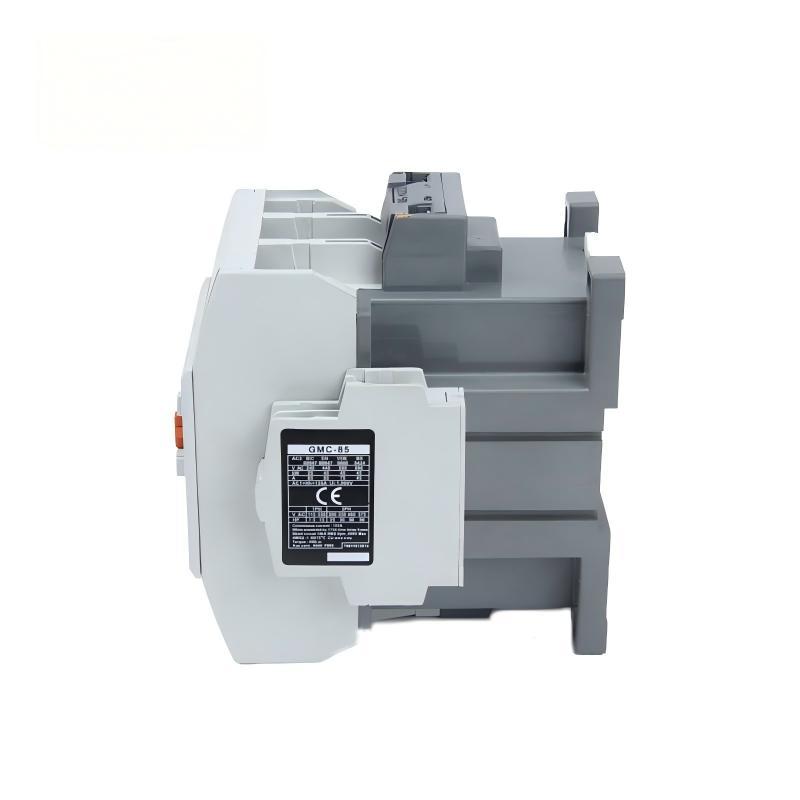

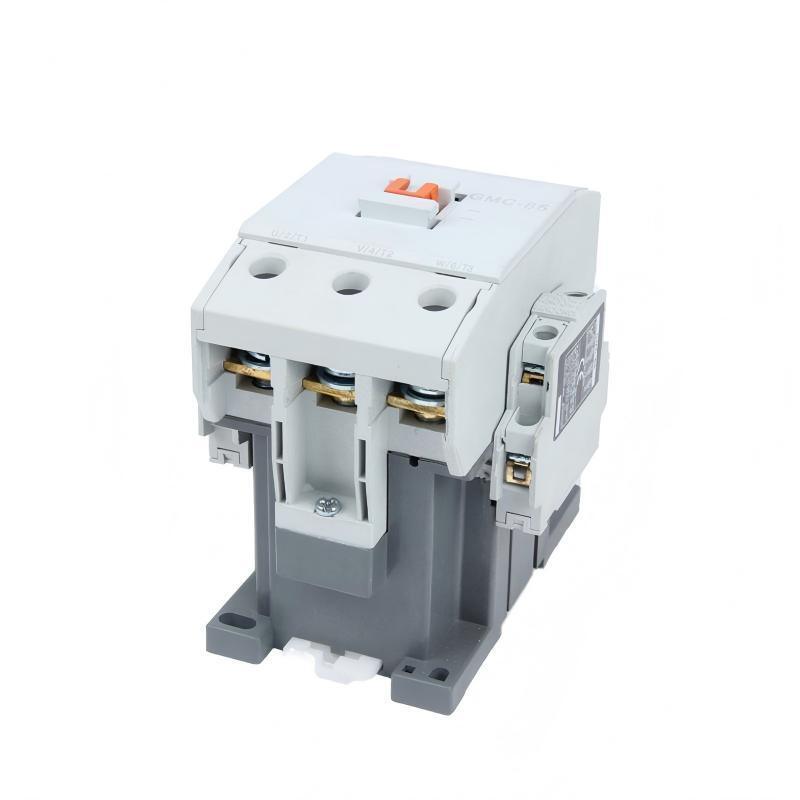

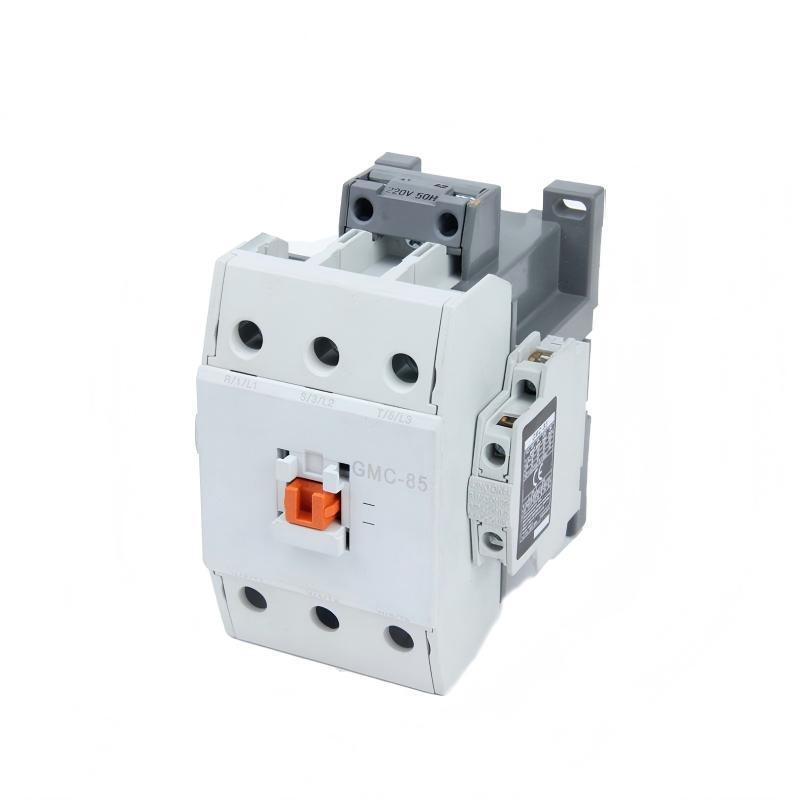

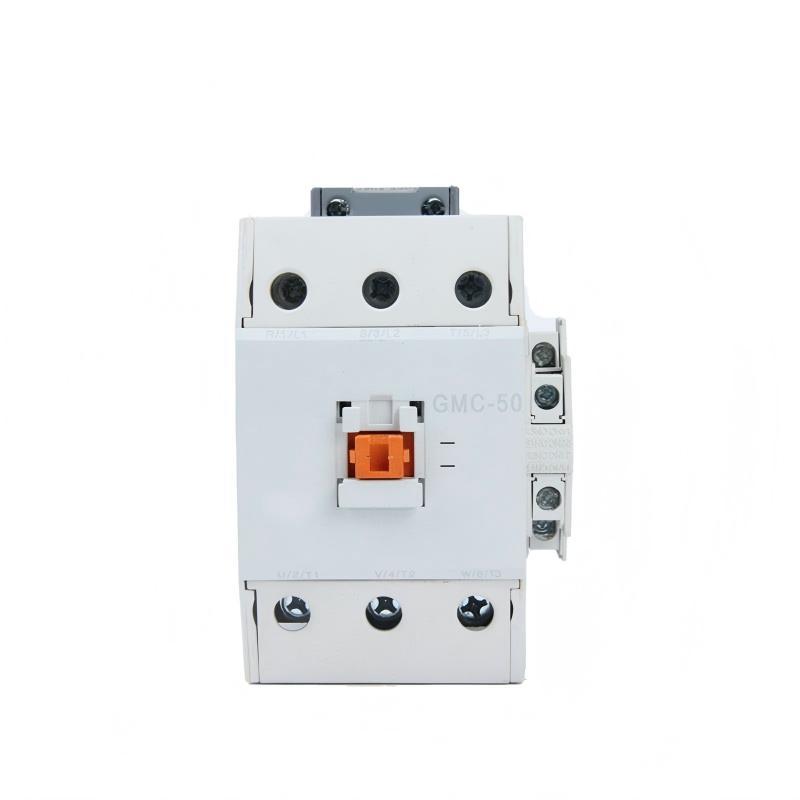

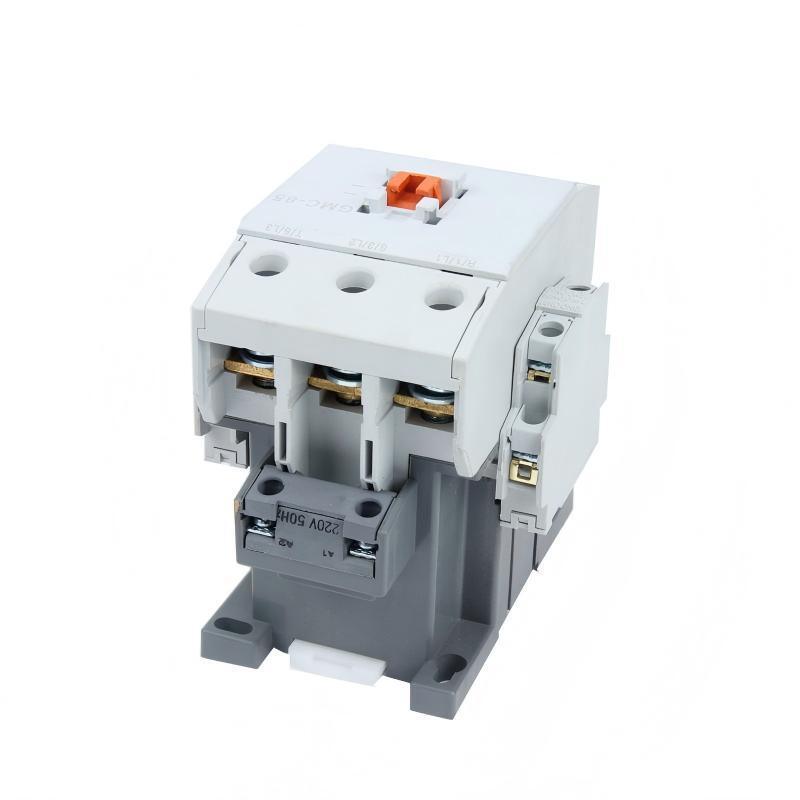

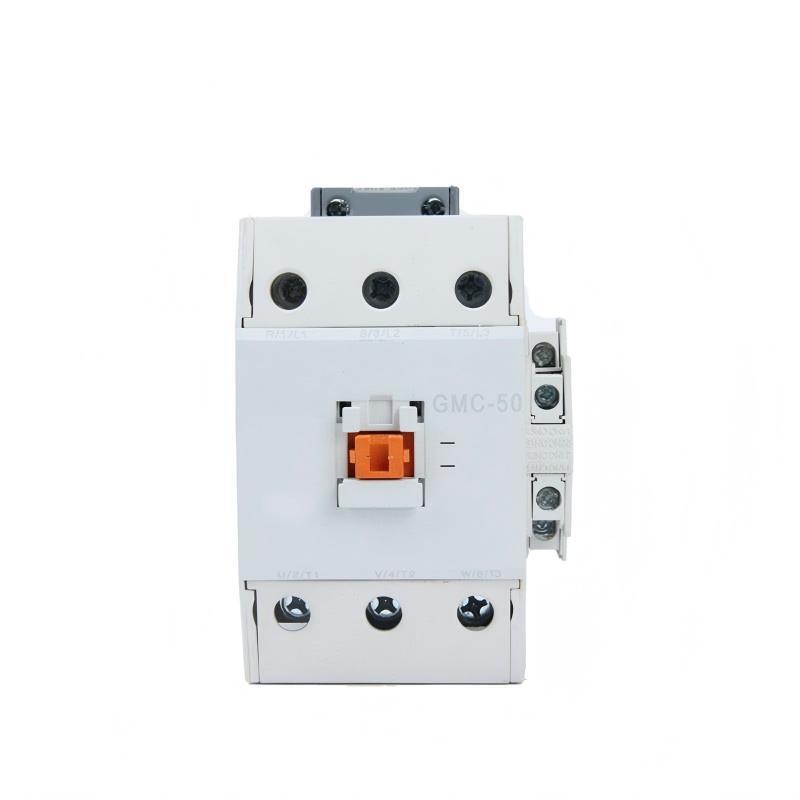

GMC-75 Electric Magnetic AC Contactor

220V 3 Poles 09 to 85 Ampere, compatible with 380V, 48V, and 110V systems

Product Features

Three pairs of main contacts for reliable power distribution
Electric shock prevention safety cover design
Flexible installation options: guide rail or screw mounting
Direct compatibility with thermal overload relays
Dual rated current level framework
Accessory installation capability on top or side
Standard configuration includes 1NO+1NC auxiliary contact

Technical Specifications

Type	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
Rated heating current (A)	50	60	80	100	110	135
Rated insulation voltage (V)	690
Rated impact withstand voltage (KV)	6
Rated making capacity	10le
Rated breaking capacity	8le
Poles	3
Auxiliary contact	2NC+2NO
Short-time withstand current(A) 10S	256	320	400	520	600	680
IEC-60947 AC1 Load	50	60	80	100	110	135

AC3 Load Power (KW)

Voltage	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
200～240V	7.5KW	11KW	15KW	18.5KW	22KW	25KW
380～440V	15KW	18.5KW	22KW	30KW	37KW	45KW
500～550V	18.5KW	22KW	30KW	33KW	37KW	45KW
690V	18.5KW	22KW	30KW	33KW	37KW	45KW

AC3 Load Current (A)

Voltage	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
200～240V	32A	40A	55A	65A	75A	85A
380～440V	32A	40A	50A	65A	75A	85A
500～550V	28A	32A	43A	60A	64A	75A
690V	20A	23A	28A	35A	42A	45A

UL508 Specifications

Parameter	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
Continuous current	45A	50A	70A	80A	90A	100A
Single-phase machine 115V	2HP	3HP	3HP	5HP	5HP	7.5HP
Single-phase machine 230V	5HP	5HP	7.5HP	10HP	15HP	15HP
Three-phase machine 200V	7.5HP	10HP	10HP	15HP	20HP	25HP
Three-phase machine 230V	10HP	10HP	15HP	20HP	25HP	30HP
Three-phase machine 460V	20HP	25HP	30HP	40HP	50HP	50HP
Three-phase machine 575V	20HP	25HP	30HP	40HP	50HP	50HP

Operation Frequency and Life Cycle

Parameter	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
Operation frequency (times/h) Electrical life	800	600
Operation frequency (times/h) Mechanical life	3600
AC-3 Electrical life (10000/times)	80	80	60	60	60	60
Mechanical life (10000/times)	800	800	600	600	600	600

Installation Dimensions

Certifications

Why Choose Our Contactors

24-hour response to all inquiries
Technical and professional guidance support
Competitive pricing with superior quality
Dedicated to 100% customer satisfaction

Frequently Asked Questions

Could I have prices of your products?

Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours. Or you can contact us by Whatsapp if there us any urgent matter.

Can we print our logo/website/company name on products?

Yes, OEM and ODM are available.

What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.

Do you inspect the finished products?

Our products 100% self-inspection and testing before packing.

How about payment terms?

Standard order could pay by T/T, L/C. Small order could support Western Union.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE,TUV,CB
Model Number:	GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, GMC-85

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	Each unit be packed in one individual inner box
Delivery Time:	15days or Depends on ordering QTYS
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000pcs per Month
