Detail Information

Mounting Type:	DIN Rail	Installation Category:	III
Pollution Degree:	Class 3	Number Of Poles:	3
Coil Voltage:	220V/110V/24V/380V	Ambient Temperature:	-5℃ To +40℃
Protection Level:	IP20	Voltage Rating:	220V
Highlight:	Plastic enclosure NC NO contact switch , IP20 protection electrical control components , Industrial AC electric contactor switch

Product Description

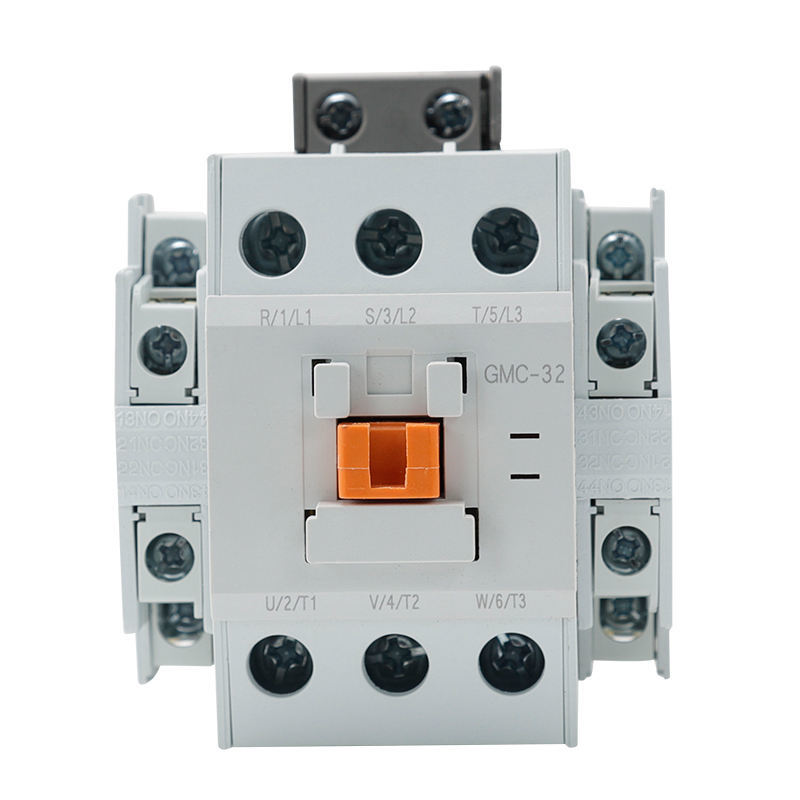

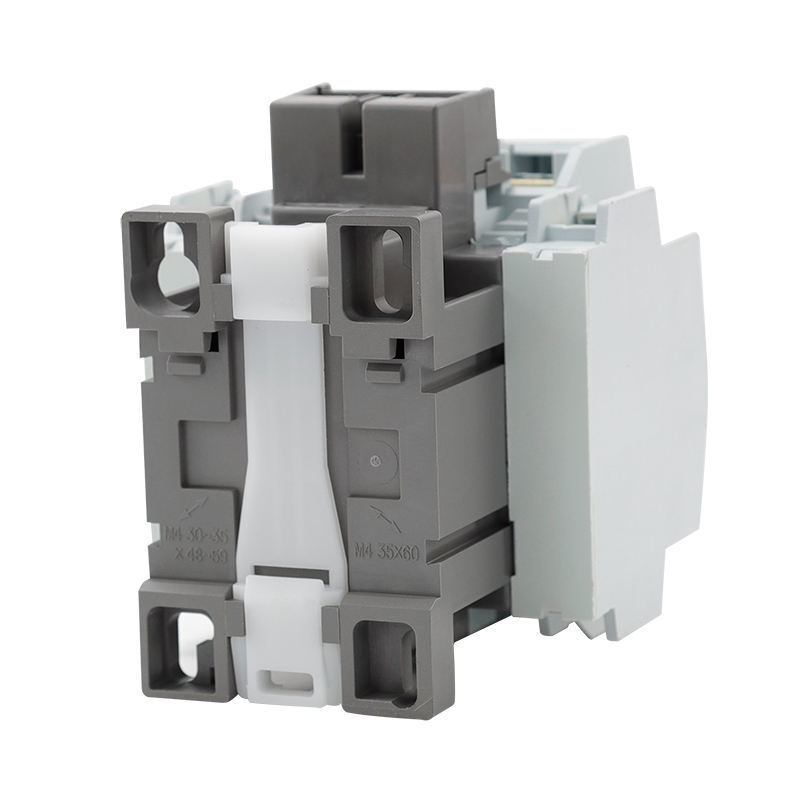

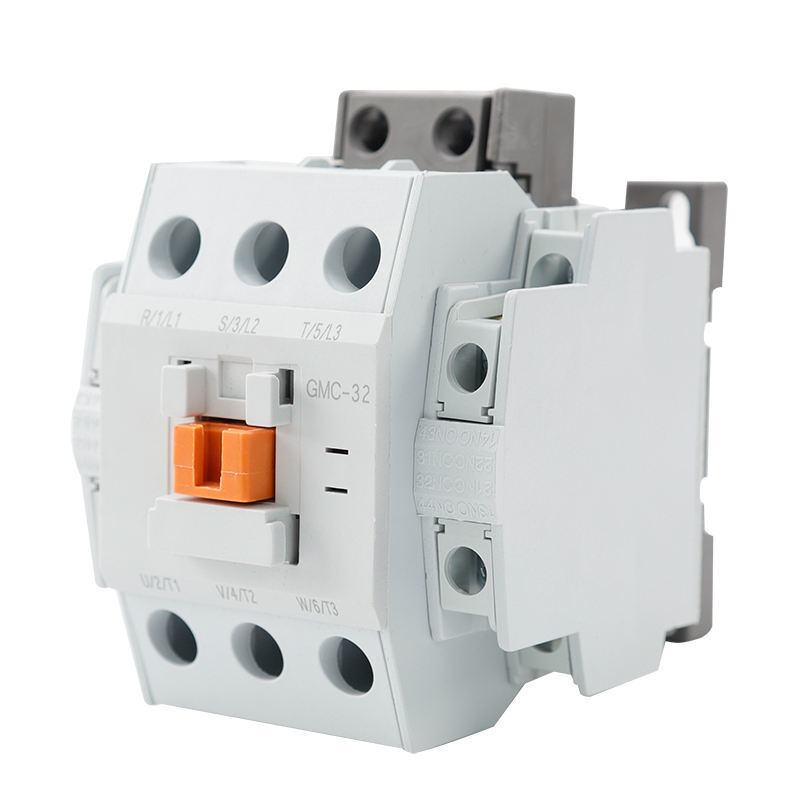

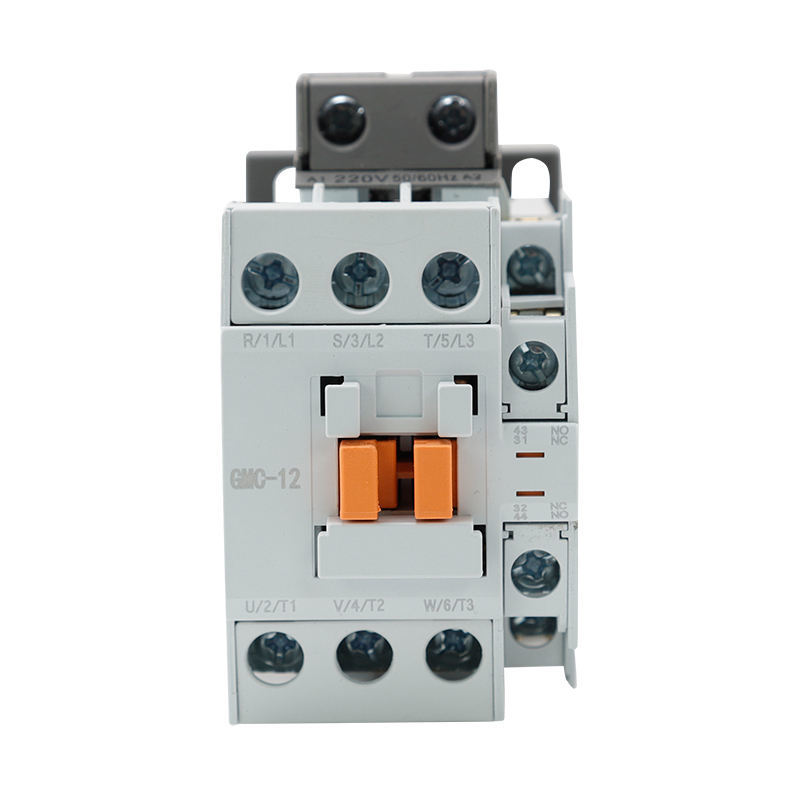

AC Electric Contactor Overview

The AC Electric Contactor is a vital component in modern electrical systems, designed to efficiently control and switch electrical power circuits. Engineered with precision and built to meet rigorous standards, this AC Contactor is ideal for various industrial and commercial applications, offering reliable performance and long-lasting durability.

Key Specifications

Product Name: AC Electric Contactor
Number of Poles: 3 (3 phase contactor)
Pollution Degree: Class 3
Installation Category: III
Current Rating: 9A, 12A, 18A, 22A, 32A, 40A, 50A, 65A, 75A, 85A
Voltage Rating: 220V
Features silver point contactor for enhanced conductivity and durability
Includes both NC (Normally Closed) and NO (Normally Open) contacts

Technical Performance Parameters

Type	GC-32	GC-40	GC-50	GC-65	GC-75	GC-85
Rated heating current (A)	50	60	80	100	110	135
Rated insulation voltage (V)	690
Rated impact withstand voltage (KV)	6
Rated making capacity	10le
Rated breaking capacity	8le
Poles	3
Auxiliary contact	2NC+2NO
Short-time withstand current(A) 10S	256	320	400	520	600	680
IEC-60947 AC1 Load	50	60	80	100	110	135
AC3 Load power 200～240V	7.5KW	11KW	15KW	18.5KW	22KW	25KW
AC3 Load power 380～440V	15KW	18.5KW	22KW	30KW	37KW	45KW
AC3 Load power 500～550V	18.5KW	22KW	30KW	33KW	37KW	45KW
AC3 Load power 690V	18.5KW	22KW	30KW	33KW	37KW	45KW
AC3 Load current 200～240V	32A	40A	55A	65A	75A	85A
AC3 Load current 380～440V	32A	40A	50A	65A	75A	85A
AC3 Load current 500～550V	28A	32A	43A	60A	64A	75A
AC3 Load current 690V	20A	23A	28A	35A	42A	45A
UL508 Continuous current	45A	50A	70A	80A	90A	100A
UL508 single-phase machine 115V	2HP	3HP	3HP	5HP	5HP	7.5HP
UL508 single-phase machine 230V	5HP	5HP	7.5HP	10HP	15HP	15HP
UL508 three-phase machine 200V	7.5HP	10HP	10HP	15HP	20HP	25HP
UL508 three-phase machine 230V	10HP	10HP	15HP	20HP	25HP	30HP
UL508 three-phase machine 460V	20HP	25HP	30HP	40HP	50HP	50HP
UL508 three-phase machine 575V	20HP	25HP	30HP	40HP	50HP	50HP
Operation frequency (times/h) Electrical life	800	600
Operation frequency (times/h) Mechanical life	3600
AC-3 Electrical life (10000/times)	80	80	60	60	60	60
Mechanical life (10000/times)	800	800	600	600	600	600

Installation Dimensions

Frequently Asked Questions

What are the available models of the YOKG AC Electric Contactor?

The available models of the YOKG AC Electric Contactor include GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, and GMC-85.

Where is the YOKG AC Electric Contactor manufactured?

The YOKG AC Electric Contactor is manufactured in China.

What is the minimum order quantity for the YOKG AC Electric Contactor?

The minimum order quantity for the YOKG AC Electric Contactor is 100 units.

What payment terms does YOKG accept for the AC Electric Contactor?

YOKG accepts T/T (Telegraphic Transfer) and L/C (Letter of Credit) as payment terms for the AC Electric Contactor.

Do you inspect the finished products?

Our products undergo 100% self-inspection and testing before packing.

Tag:

Place of Origin:	China
Brand Name:	YOKG
Certification:	CE
Model Number:	GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, GMC-85

Minimum Order Quantity:	500
Packaging Details:	Standard export package
Payment Terms:	T/T,L/C

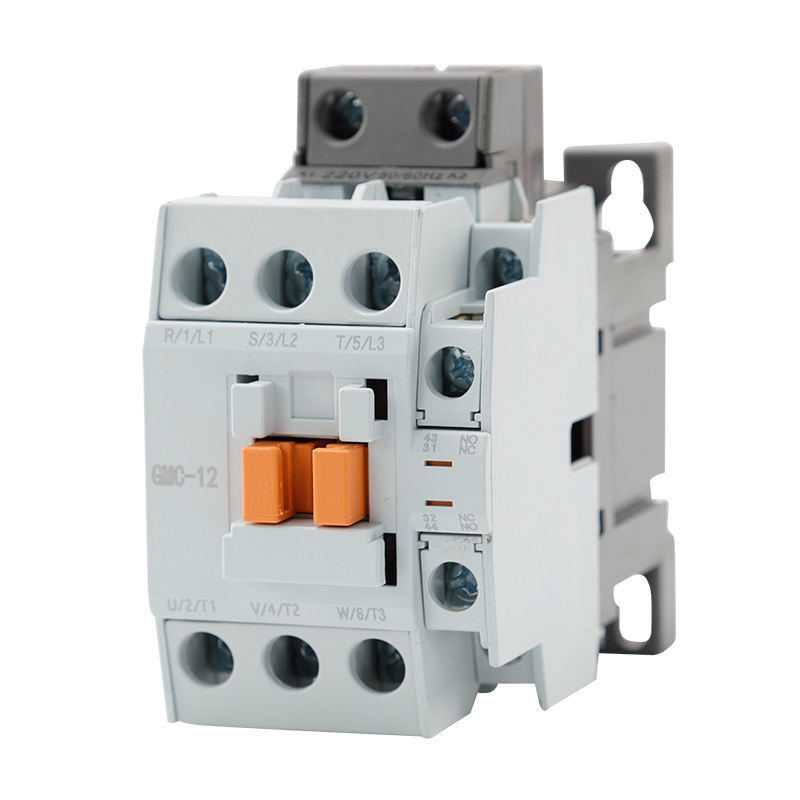

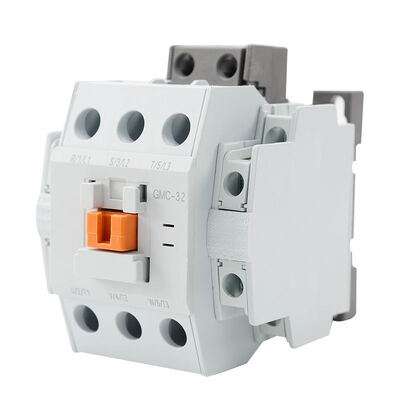

Plastic Enclosure NC NO Contact Switch Components IP20 Protection Level Used in Industrial Electrical Control Equipment
