Detail Information

Number Of Poles:	3	Protection Level:	IP20
Current Rating:	9A,12A,18A,22A,32A,40A,50A,65A,75A,85A	Voltage Rating:	220V
Installation Category:	III	Coil Voltage:	220V/110V/24V/380V
Mounting Type:	DIN Rail	Frequency Rating:	50/60Hz
Highlight:	IP20 AC electric contactor , plastic enclosure AC contactor , electrical switching contactor

Product Description

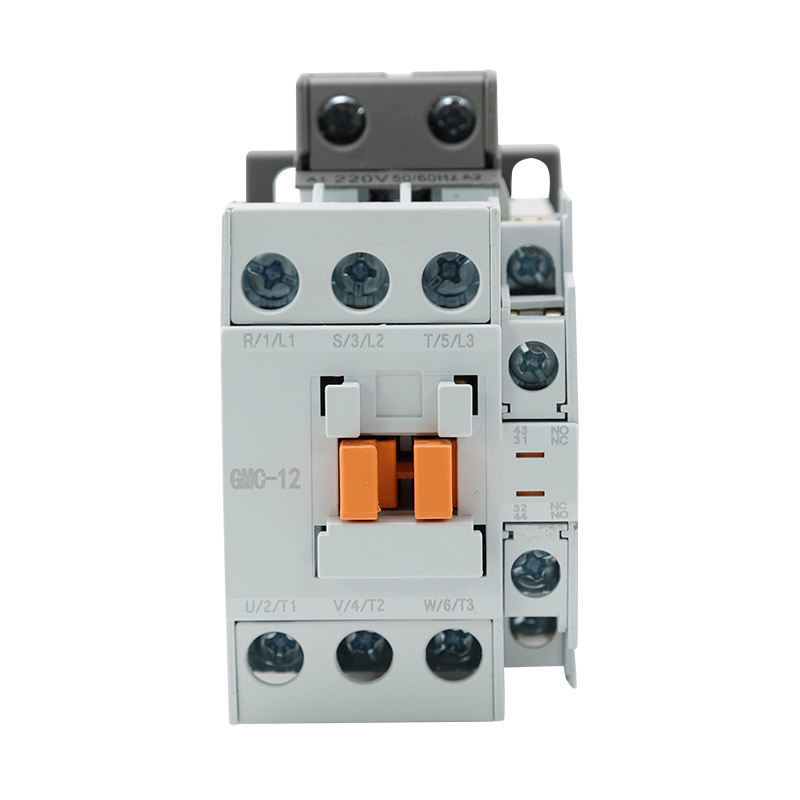

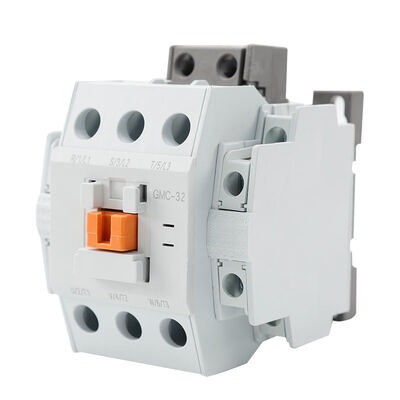

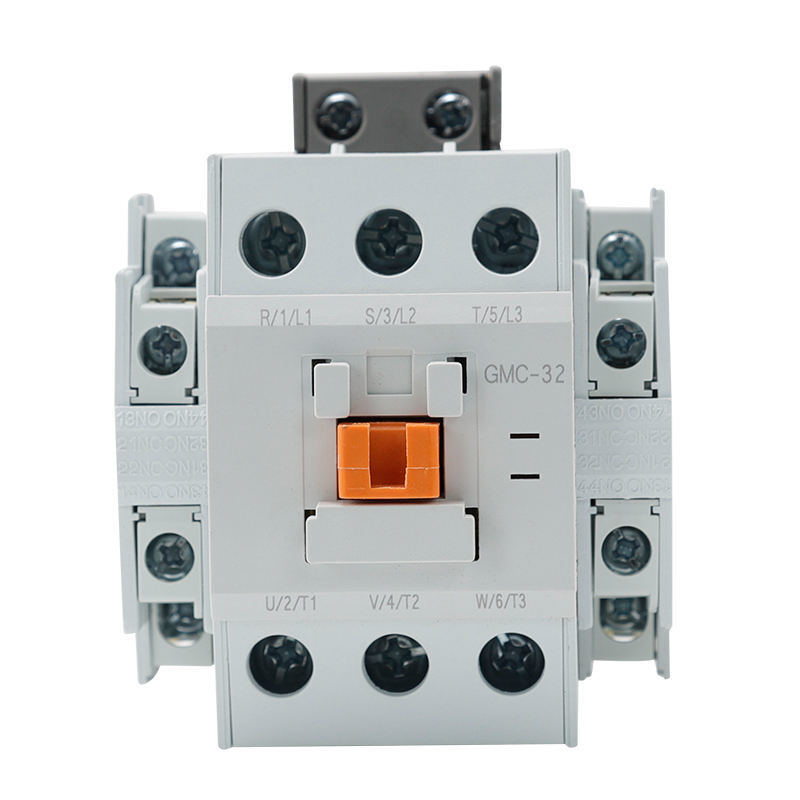

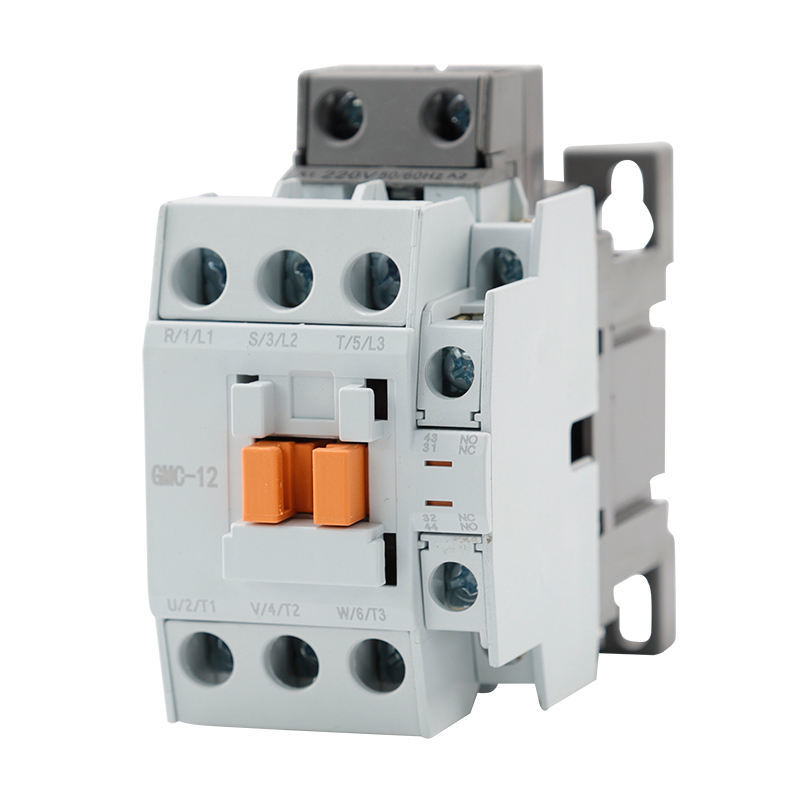

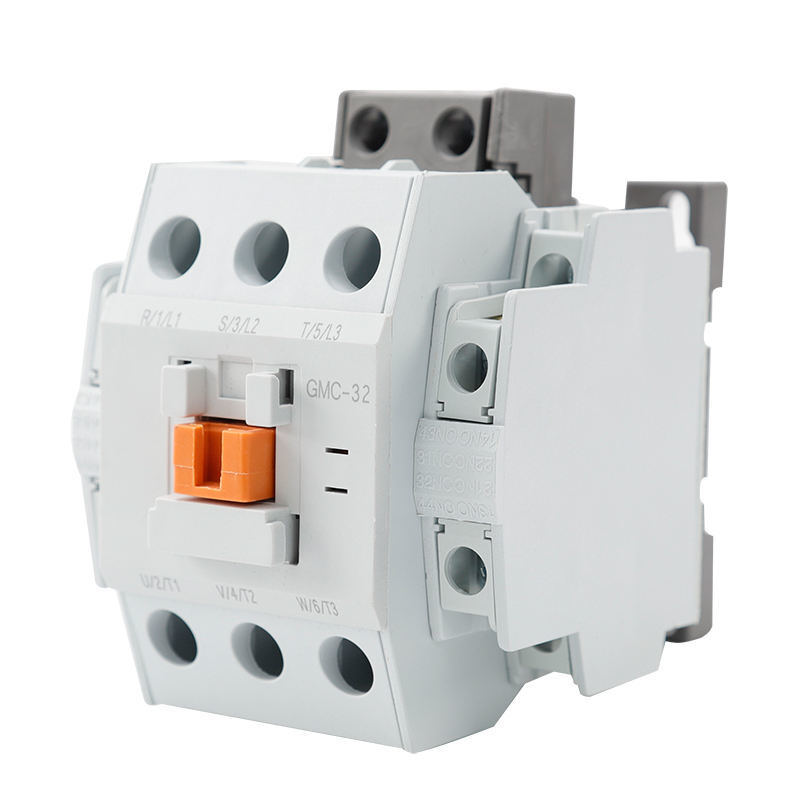

IP20 Protection Level AC Electric Contactor

Product Overview

The AC Electric Contactor is a robust and reliable device designed for controlling electrical power in various industrial and commercial applications. Engineered specifically for three-phase electrical systems, it serves as an essential component for motor control circuits, lighting, heating, and other electrical equipment requiring frequent switching.

Key Features

Product Name: AC Electric Contactor
Enclosure Material: Durable Plastic

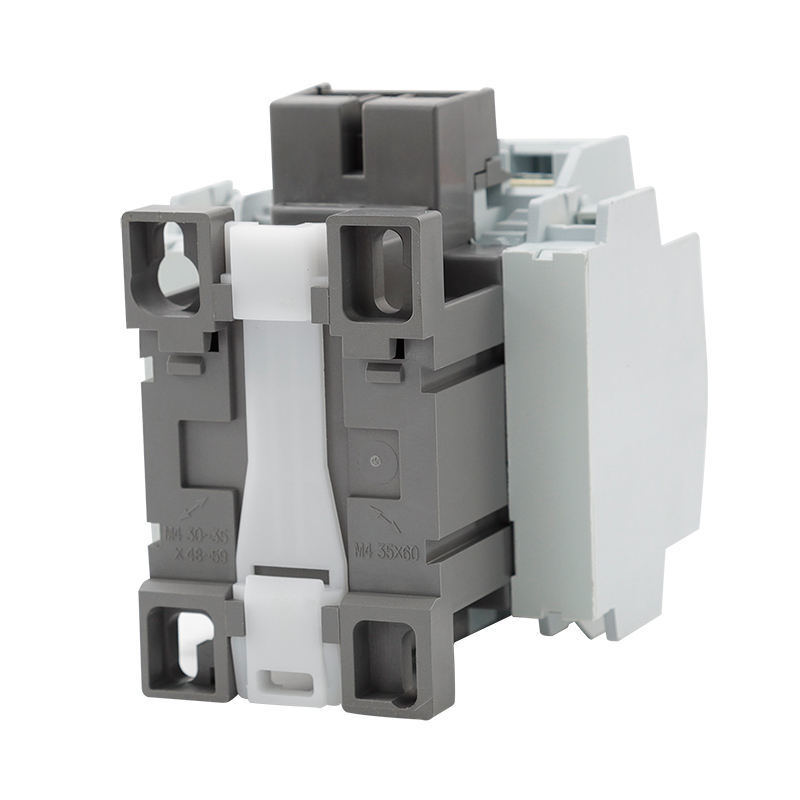

Mounting Type: Easy DIN Rail Installation
Installation Category: III for enhanced safety
Protection Level: IP20 to prevent solid object ingress
Voltage Rating: 220V suitable for various applications
Features both NC+NO contacts for versatile control
Reliable AC Contactor performance for industrial use

Applications

The AC Electric Contactor series, including models GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, and GMC-85, is designed for a wide range of applications where reliable electrical switching is essential. The silver point contactor ensures excellent conductivity and durability, providing reliable switching for motors, lighting systems, and heating equipment.

Technical Specifications

Type	GC-32	GC-40	GC-50	GC-65	GC-75	GC-85
Rated heating current (A)	50	60	80	100	110	135
Rated insulation voltage (V)	690
Rated impact withstand voltage (KV)	6
Rated making capacity	10le
Rated breaking capacity	8le
Poles	3
Auxiliary contact	2NC+2NO
Short-time withstand current(A) 10S	256	320	400	520	600	680
IEC-60947 AC1 Load	50	60	80	100	110	135
AC3 Load Power
200～240V	7.5KW	11KW	15KW	18.5KW	22KW	25KW
380～440V	15KW	18.5KW	22KW	30KW	37KW	45KW
500～550V	18.5KW	22KW	30KW	33KW	37KW	45KW
690V	18.5KW	22KW	30KW	33KW	37KW	45KW
AC3 Load Current
200～240V	32A	40A	55A	65A	75A	85A
380～440V	32A	40A	50A	65A	75A	85A
500～550V	28A	32A	43A	60A	64A	75A
690V	20A	23A	28A	35A	42A	45A
UL508 Continuous Current
Continuous current	45A	50A	70A	80A	90A	100A
Single-Phase Machine
115V	2HP	3HP	3HP	5HP	5HP	7.5HP
230V	5HP	5HP	7.5HP	10HP	15HP	15HP
Three-Phase Machine
200V	7.5HP	10HP	10HP	15HP	20HP	25HP
230V	10HP	10HP	15HP	20HP	25HP	30HP
460V	20HP	25HP	30HP	40HP	50HP	50HP
575V	20HP	25HP	30HP	40HP	50HP	50HP
Operation frequency (times/h)	Electrical life: 800 \| Mechanical life: 3600
AC-3 Electrical life (10000/times)	80	80	60	60	60	60
Mechanical life (10000/times)	800	800	600	600	600	600

Installation Dimensions

Frequently Asked Questions

What are the available model numbers for the YOKG AC Electric Contactor?

The YOKG AC Electric Contactor is available in the following model numbers: GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, and GMC-85.

Where is the YOKG AC Electric Contactor manufactured?

The YOKG AC Electric Contactor is manufactured in China.

What is the minimum order quantity for the YOKG AC Electric Contactor?

The minimum order quantity for the YOKG AC Electric Contactor is 100 units.

What payment terms does YOKG accept for purchasing the AC Electric Contactor?

YOKG accepts payment terms via T/T (Telegraphic Transfer) and L/C (Letter of Credit) for the AC Electric Contactor.

What applications are suitable for the YOKG AC Electric Contactor?

The YOKG AC Electric Contactor is suitable for controlling electric motors, lighting, heating, and other electrical loads in industrial and commercial applications.
