Detail Information

Current Rating:	9A,12A,18A,22A,32A,40A,50A,65A,75A,85A	Mounting Type:	DIN Rail
Voltage Rating:	220V	Pollution Degree:	Class 3
Number Of Poles:	3	Frequency Rating:	50/60Hz
Contact Material:	Silver OR COPPER	Protection Level:	IP20
Highlight:	3 phase AC electric contactor , electrical switching contactor with IP20 , 3 phase contactor with protection

Product Description

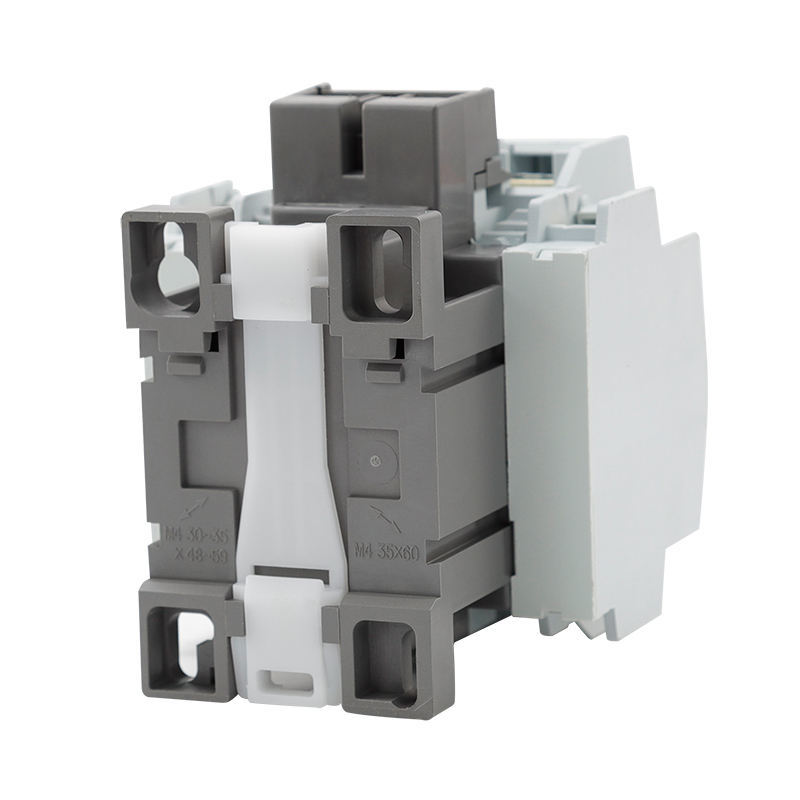

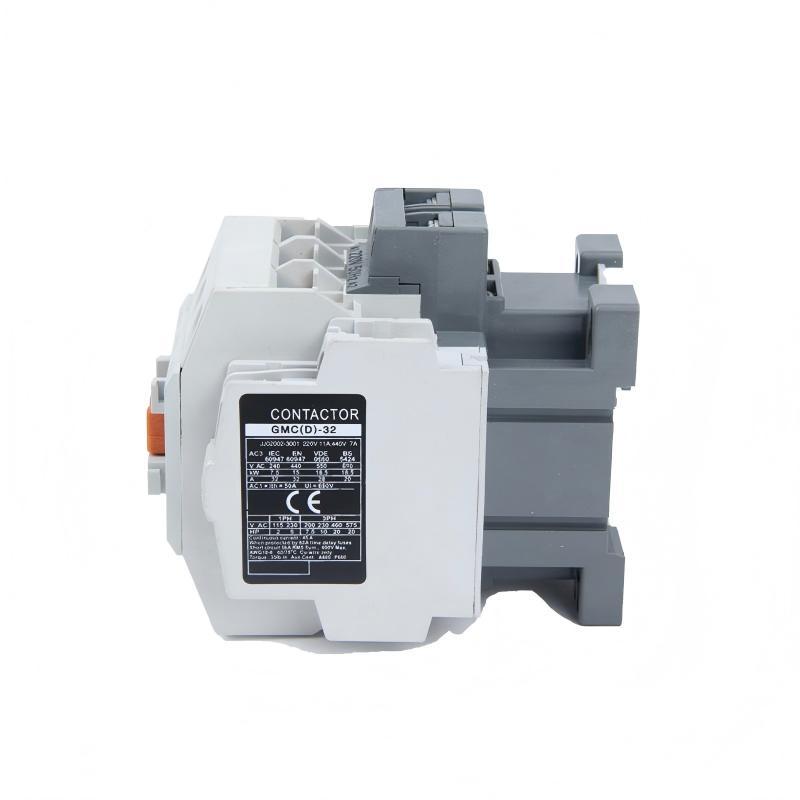

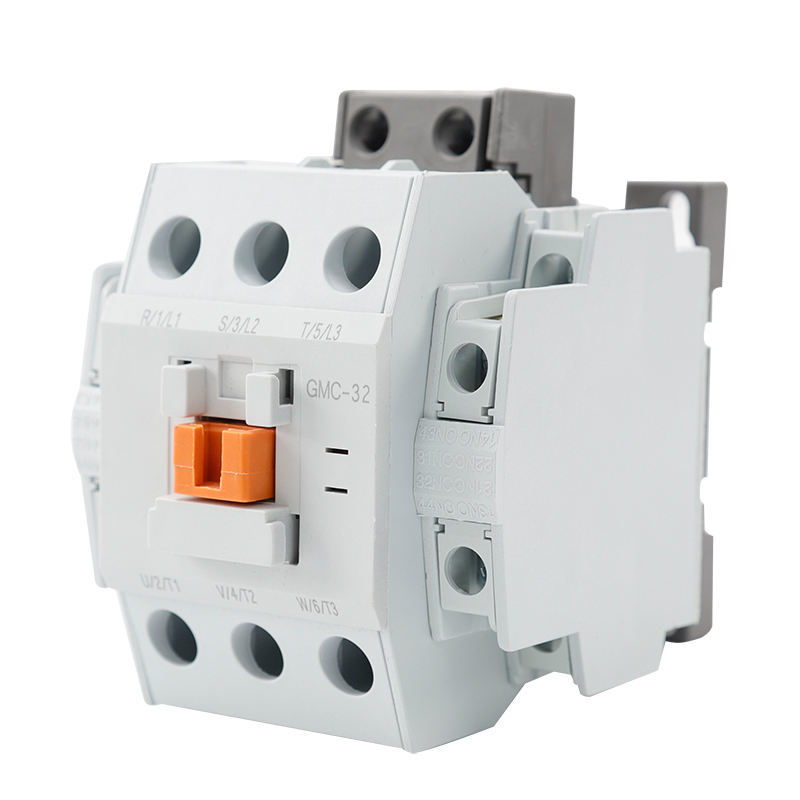

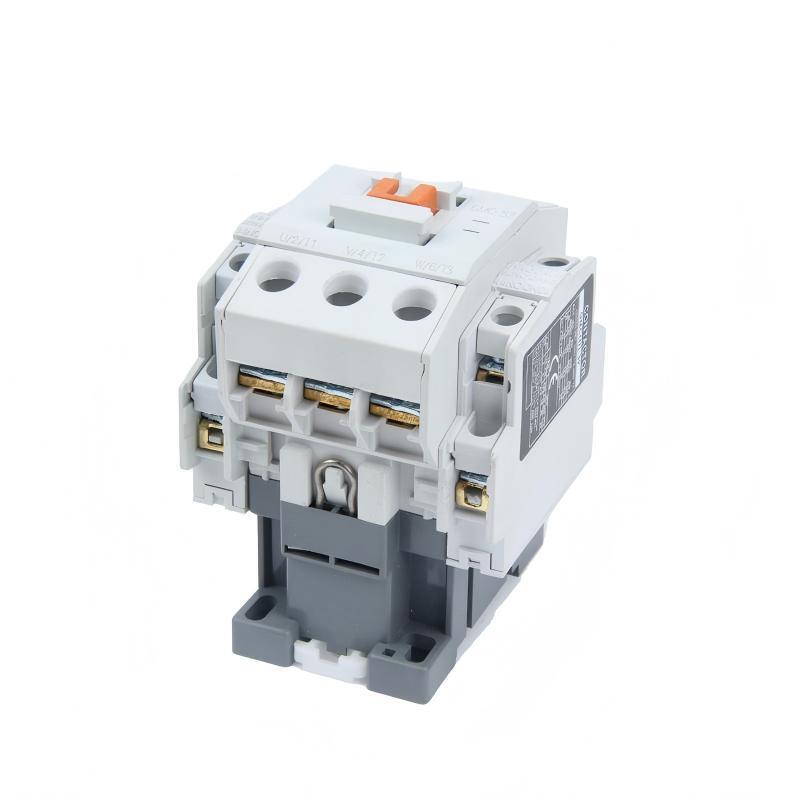

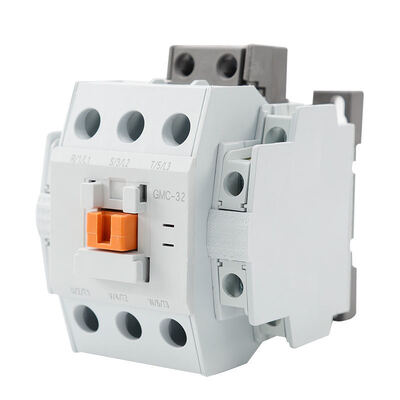

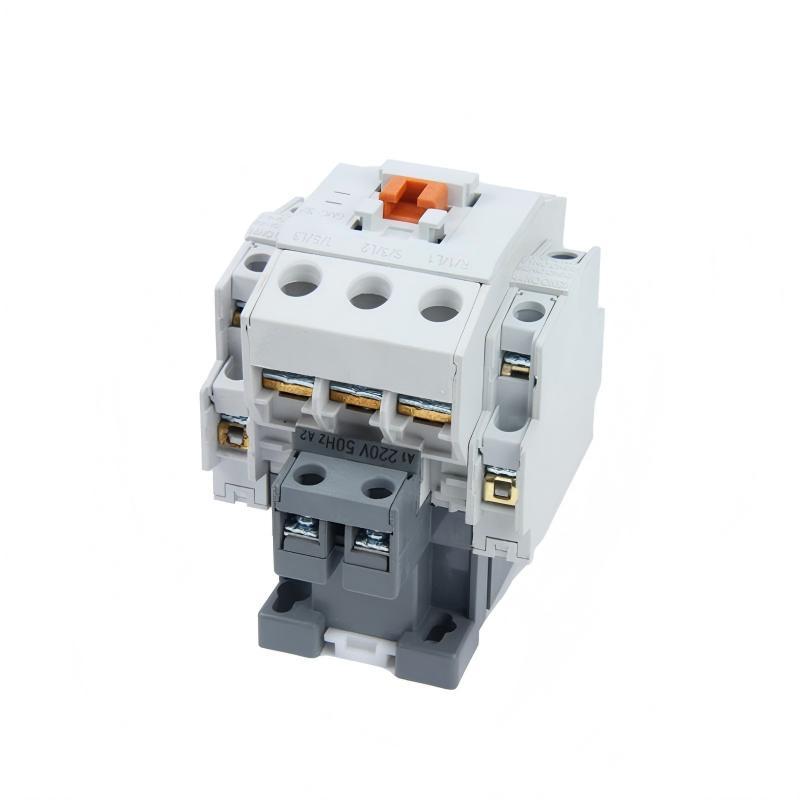

3 Phase Contactor Offering Electrical Switching With IP20 Protection Level

Product Features

Product Name: AC Electric Contactor
Protection Level: IP20
Mounting Type: DIN Rail
Voltage Rating: 220V
Coil Voltage Options: 220V, 110V, 24V, 380V
Number of Poles: 3
Silver point contactor for enhanced conductivity and durability
Includes NC/NO (Normally Closed/Normally Open) contacts for versatile control
Flexible wiring and operation with NC/NO contact configuration

Technical Specifications

Type	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
Rated heating current (A)	50	60	80	100	110	135
Rated insulation voltage (V)	690
Rated impact withstand voltage (KV)	6
Rated making capacity	10le
Rated breaking capacity	8le
Poles	3
Auxiliary contact	2NC+2NO
Short-time withstand current(A) 10S	256	320	400	520	600	680
IEC-60947 AC1 Load	50	60	80	100	110	135

AC3 Load Power (KW)

Voltage	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
200～240V	7.5KW	11KW	15KW	18.5KW	22KW	25KW
380～440V	15KW	18.5KW	22KW	30KW	37KW	45KW
500～550V	18.5KW	22KW	30KW	33KW	37KW	45KW
690V	18.5KW	22KW	30KW	33KW	37KW	45KW

AC3 Load Current (A)

Voltage	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
200～240V	32A	40A	55A	65A	75A	85A
380～440V	32A	40A	50A	65A	75A	85A
500～550V	28A	32A	43A	60A	64A	75A
690V	20A	23A	28A	35A	42A	45A

UL508 Specifications

Parameter	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
Continuous current	45A	50A	70A	80A	90A	100A
Single-phase machine 115V	2HP	3HP	3HP	5HP	5HP	7.5HP
Single-phase machine 230V	5HP	5HP	7.5HP	10HP	15HP	15HP
Three-phase machine 200V	7.5HP	10HP	10HP	15HP	20HP	25HP
Three-phase machine 230V	10HP	10HP	15HP	20HP	25HP	30HP
Three-phase machine 460V	20HP	25HP	30HP	40HP	50HP	50HP
Three-phase machine 575V	20HP	25HP	30HP	40HP	50HP	50HP

Operation Frequency and Life Cycle

Parameter	GMC-32	GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
Operation frequency (times/h) Electrical life	800	600
Operation frequency (times/h) Mechanical life	3600
AC-3 Electrical life (10000/times)	80	80	60	60	60	60
Mechanical life (10000/times)	800	800	600	600	600	600

Installation Dimensions

Frequently Asked Questions

What are the available models of the YOKG AC Electric Contactor?

The YOKG AC Electric Contactor is available in the following models: GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, and GMC-85.

Where is the YOKG AC Electric Contactor manufactured?

The YOKG AC Electric Contactor is manufactured in China.

What is the minimum order quantity for the YOKG AC Electric Contactor?

The minimum order quantity for the YOKG AC Electric Contactor is 100 units.

What payment terms does YOKG accept for purchasing the AC Electric Contactor?

YOKG accepts T/T (Telegraphic Transfer) and L/C (Letter of Credit) as payment terms for the AC Electric Contactor.

Can the YOKG AC Electric Contactor be used in industrial applications?

Yes, the YOKG AC Electric Contactor is designed for various industrial applications requiring reliable switching of electrical circuits.
