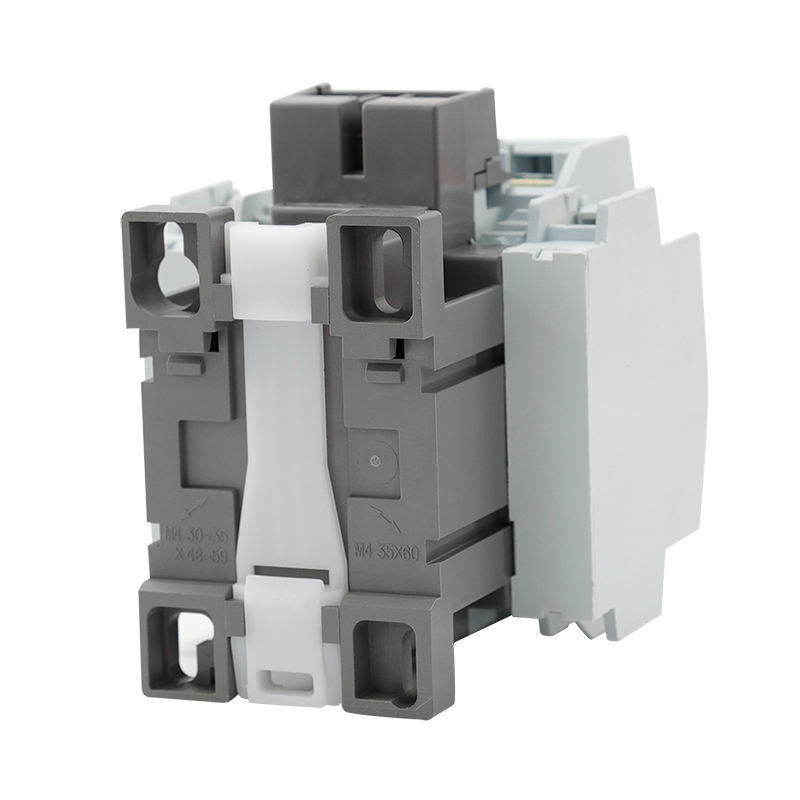

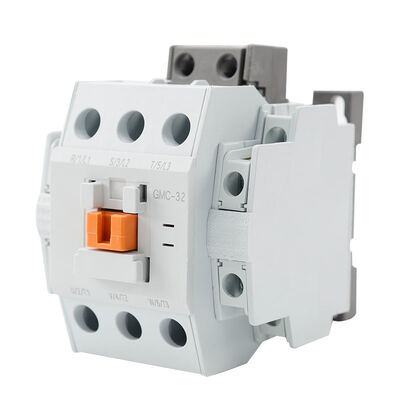

40A AC Contactor 220V
Designed for motor control and electrical circuit switching applications with reliable performance in industrial and commercial environments.
Product Features
- Product Name: AC Electric Contactor
- Type: Silver Point Contactor
- Suitable for 3 Phase Contactor applications
- Ambient Temperature Range: -5℃ to +40℃
- Protection Level: IP20
- Contact Material: Silver or Copper
- Frequency Rating: 50/60Hz
- Current Rating: 9A, 12A, 18A, 22A, 32A, 40A, 50A, 65A, 75A, 85A
Applications
The YOKG AC Electric Contactor series, including models GMC-9 through GMC-85, is designed for industrial and commercial applications requiring reliable electrical load switching. These 3 phase contactors are extensively used in motor control systems, HVAC equipment, lighting control, and automation systems.
Technical Specifications
| Type |
GMC-32 |
GMC-40 |
GMC-50 |
GMC-65 |
GMC-75 |
GMC-85 |
| Rated heating current (A) |
50 |
60 |
80 |
100 |
110 |
135 |
| Rated insulation voltage (V) |
690 |
| Rated impact withstand voltage (KV) |
6 |
| Rated making capacity |
10le |
| Rated breaking capacity |
8le |
| Poles |
3 |
| Auxiliary contact |
2NC+2NO |
| Short-time withstand current(A) 10S |
256 |
320 |
400 |
520 |
600 |
680 |
| IEC-60947 AC1 Load |
50 |
60 |
80 |
100 |
110 |
135 |
| AC3 Load power 200-240V |
7.5KW |
11KW |
15KW |
18.5KW |
22KW |
25KW |
| AC3 Load power 380-440V |
15KW |
18.5KW |
22KW |
30KW |
37KW |
45KW |
| AC3 Load power 500-550V |
18.5KW |
22KW |
30KW |
33KW |
37KW |
45KW |
| AC3 Load power 690V |
18.5KW |
22KW |
30KW |
33KW |
37KW |
45KW |
| AC3 Load current 200-240V |
32A |
40A |
55A |
65A |
75A |
85A |
| AC3 Load current 380-440V |
32A |
40A |
50A |
65A |
75A |
85A |
| AC3 Load current 500-550V |
28A |
32A |
43A |
60A |
64A |
75A |
| AC3 Load current 690V |
20A |
23A |
28A |
35A |
42A |
45A |
| UL508 Continuous current |
45A |
50A |
70A |
80A |
90A |
100A |
| Operation frequency (times/h) Electrical life |
800 |
600 |
|
| Mechanical life |
3600 |
| AC-3 Electrical life (10000/times) |
80 |
80 |
60 |
60 |
60 |
60 |
| Mechanical life (10000/times) |
800 |
800 |
600 |
600 |
600 |
600 |
Installation Dimensions
Support and Services
Our AC Electric Contactor is designed for reliable and efficient electrical circuit switching. The included user manual provides detailed installation instructions, wiring diagrams, and troubleshooting guidance. For optimal performance, ensure installation according to specified electrical ratings and environmental conditions, verify secure connections, and avoid exceeding rated capacity. Regular maintenance including contact inspection and cleaning is recommended.
Frequently Asked Questions
What are the available models for the YOKG AC Electric Contactor?

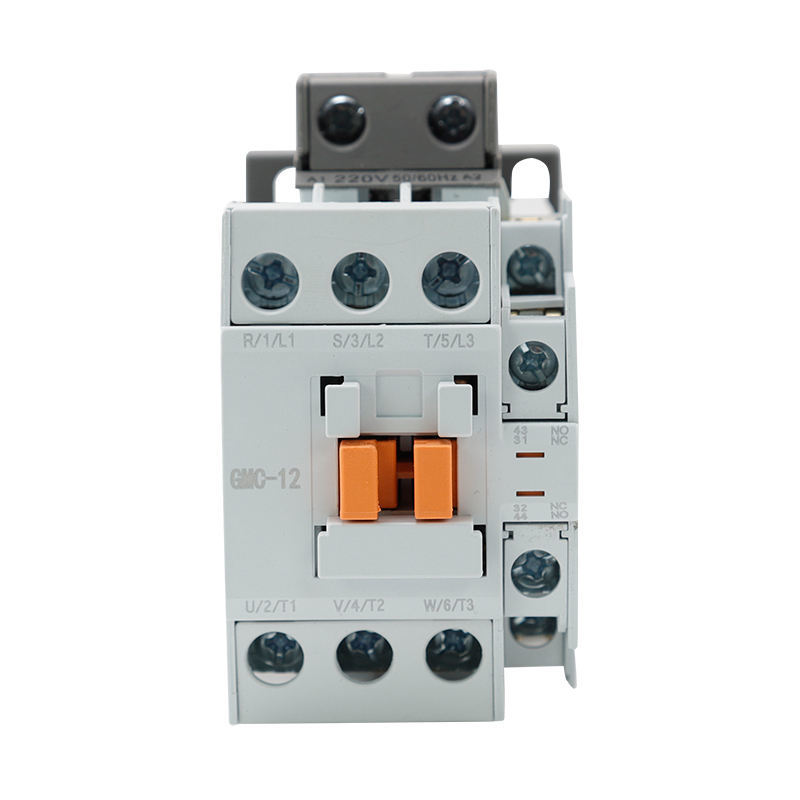

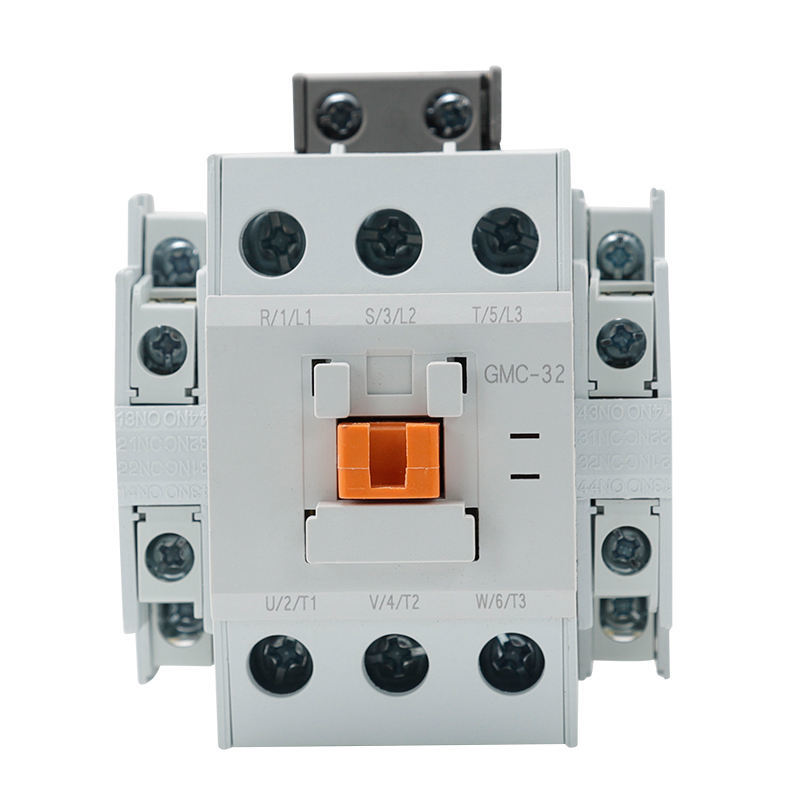

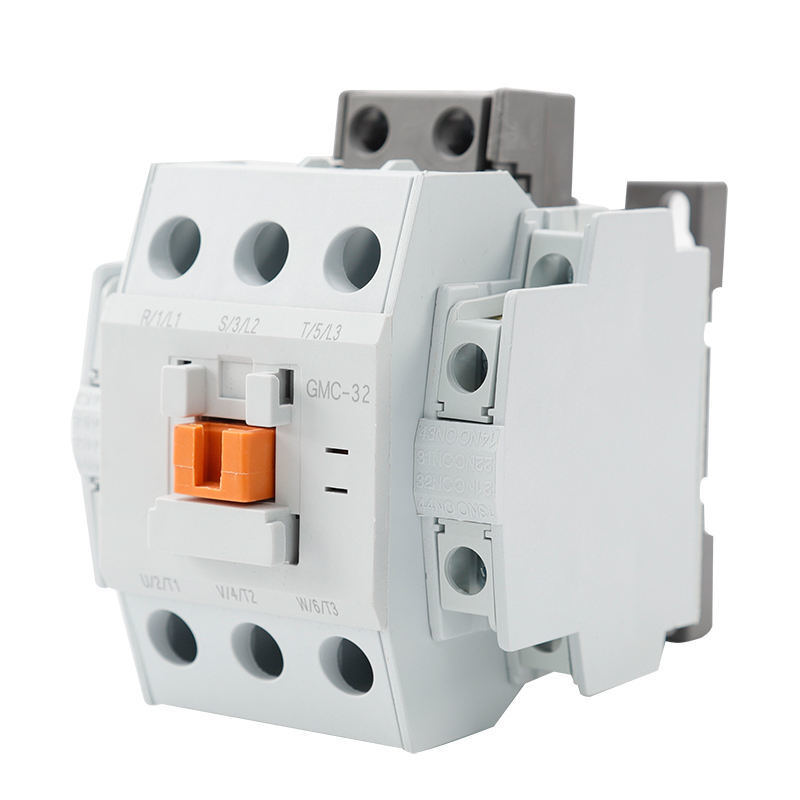

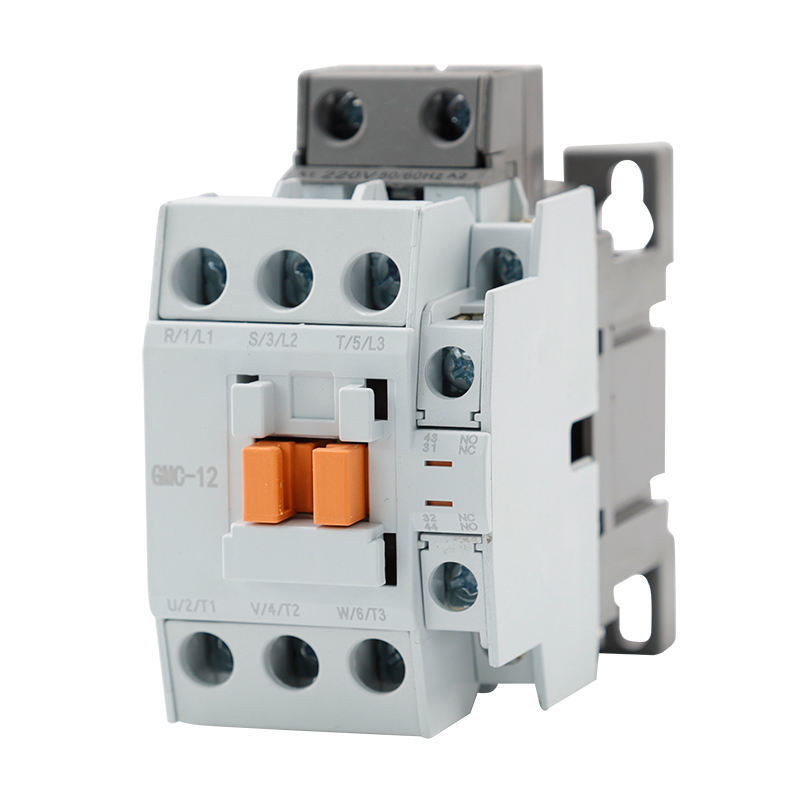

The YOKG AC Electric Contactor is available in the following models: GMC-9, GMC-12, GMC-18, GMC-22, GMC-32, GMC-40, GMC-50, GMC-65, GMC-75, and GMC-85.
Where is the YOKG AC Electric Contactor manufactured?
The YOKG AC Electric Contactor is manufactured in China.
What is the minimum order quantity for purchasing the YOKG AC Electric Contactor?
The minimum order quantity for the YOKG AC Electric Contactor is 100 units.
What payment terms does YOKG accept for the AC Electric Contactor?
YOKG accepts T/T (Telegraphic Transfer) and L/C (Letter of Credit) as payment terms for the AC Electric Contactor.
What applications are suitable for the YOKG AC Electric Contactor?
The YOKG AC Electric Contactor is suitable for controlling electric motors, lighting, heating equipment, and other electrical loads in industrial and commercial applications.
