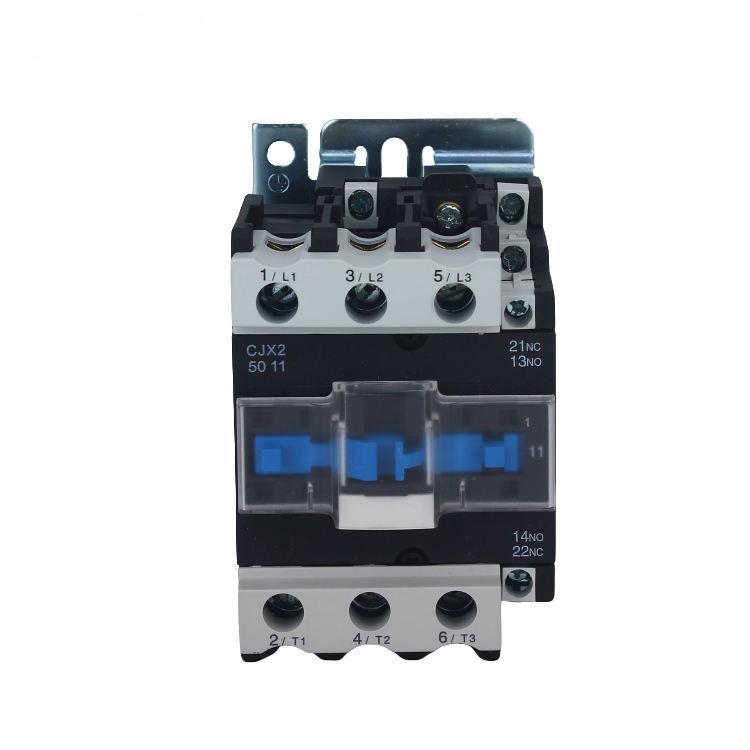

AC Coil Din Rail Electric Contactor 65A NO NC 12V 24V 48V 110V 220V 380V

Application:
The contactor covered with a dust cover greatly improves the service life and pull-in time of the product, thereby better protecting the equipment. AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50 HZ or 60 HZ, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the thermal relay, it becomes the electromagnetic starter for protecting the overload circuits.

This series contactor complies with GB 14048, IEC60947-4-1

Note: Complete technical specifications table available in product documentation.

• Application: Auxiliary contacts block, time relay and current-limited contacts block, and thermal relay, then to be other derivative products
• Characteristic: small volume, light weight, less power loss, long life and safe and reliability etc
• Installation: The standard installing rail of 35mm (sc09~95) and the standard installing rail of 75mm(SC40~95), or screws

The contactor can be equipped with 1NO auxiliary contact or 1NC auxiliary contact(less than 32A), and 1NO auxiliary contact+1NC auxiliary contact(more than 40A). In addition, it can be equipped with F4 auxiliary contactor block (2blocks or 4blocks).
