Product Details:
|
| Type: | Contactor | Main Circuit Rating Voltage: | 24V 110V 220V 380V |
|---|---|---|---|
| Product Name: | F4-11 Auxiliary Contact | Condition: | 100%NEW |
| Frequency: | 50HZ/60HZ | ||
| High Light: | Auxiliary Contact Block AC Contactor,1NO+1NC AC Contactor,LA1-DN11 AC Electric Contactor |
||

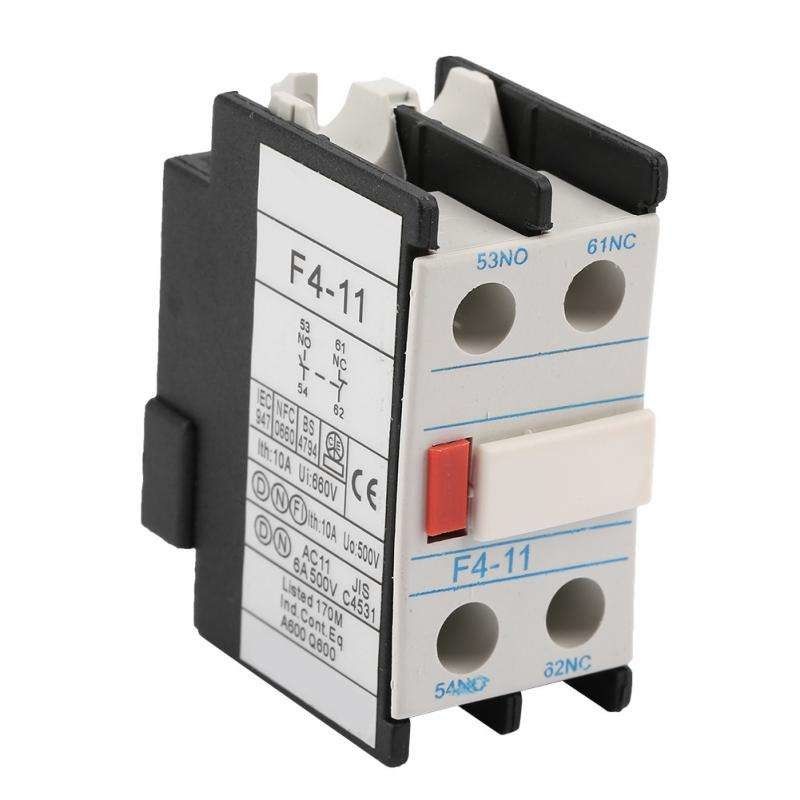

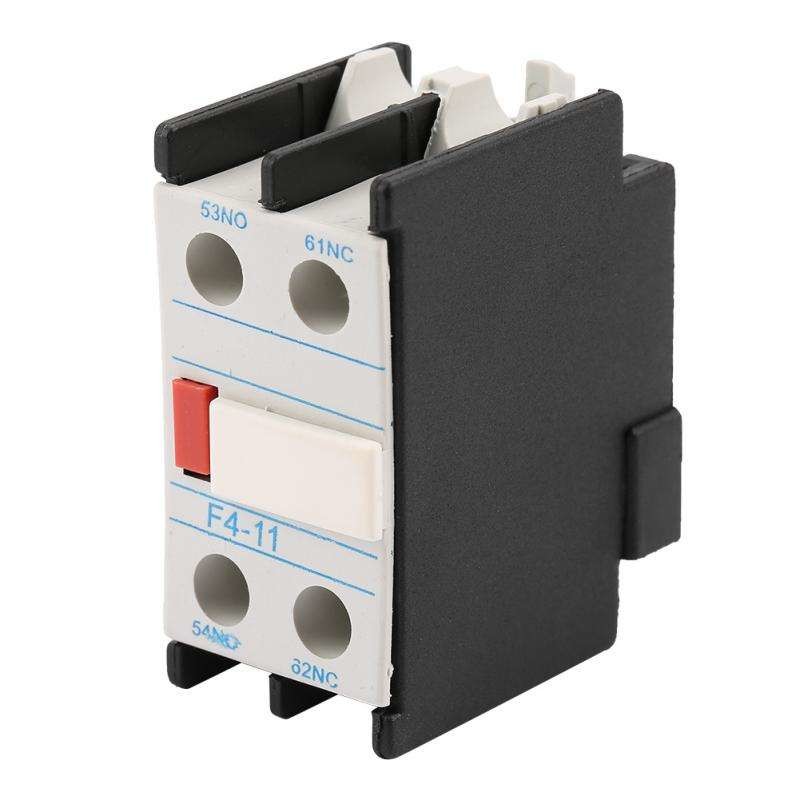

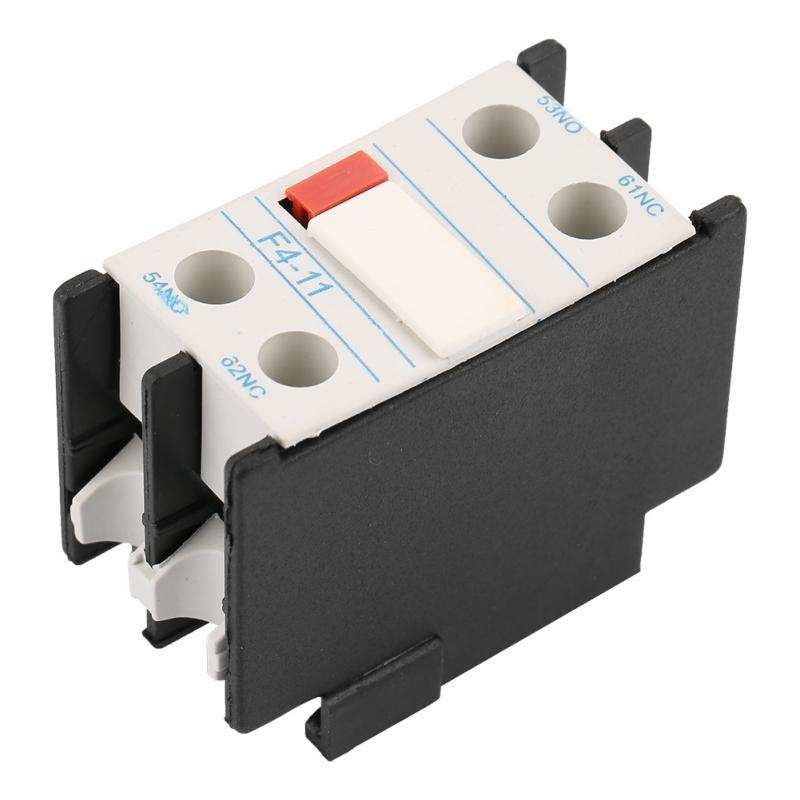

1NO+1NC Auxiliary Contact Block F4-11 CJX2 AC Contactor Supporting LA1-DN11
Application:
LA1-DN / F4 Series Auxiliary contact block can be mainly used in the controllable circuit of AC 50Hz/60Hz, AC-15,rated operational voltage 380V and rated up to 0.95A,or in DC-13,rated operational voltage DC220V and rated current up to .15A . It can be used to control Signal and Electrical linkage.
This product is suitable for the conditions when CJX2 Series contactor has no enough auxiliary contact in controllable circuit,combining auxiliary contact block with CJX2 series contactor can increase number of auxiliary contacts.
It has two styles,one is two contact block,another is four contact block,the onle difference between them is the number of auxiliary contact.
This product conforms to GB14048.4, IEC60947-4-1 standard.
Features:
1. 100% brand new and high quality.
2. The electric shock mode adopt one normal open and one normal close.
3. Light weight and good contact performance.
4. A good tool for AC contactor which can help it open or close.
5. This product can work with CJX2 AC contactor.
Specification:
Condition: 100% Brand New
Model: F4-11
Electric Shock Mode: 1Normal Open/1 Normal Close
Heating Current: 10A
Auxiliary Contact Block Usage:
Technical Parameter:
