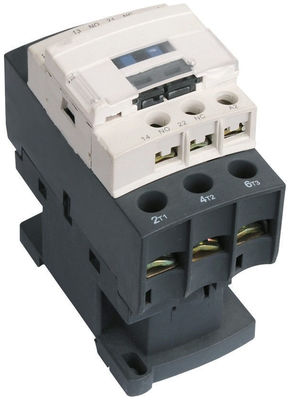

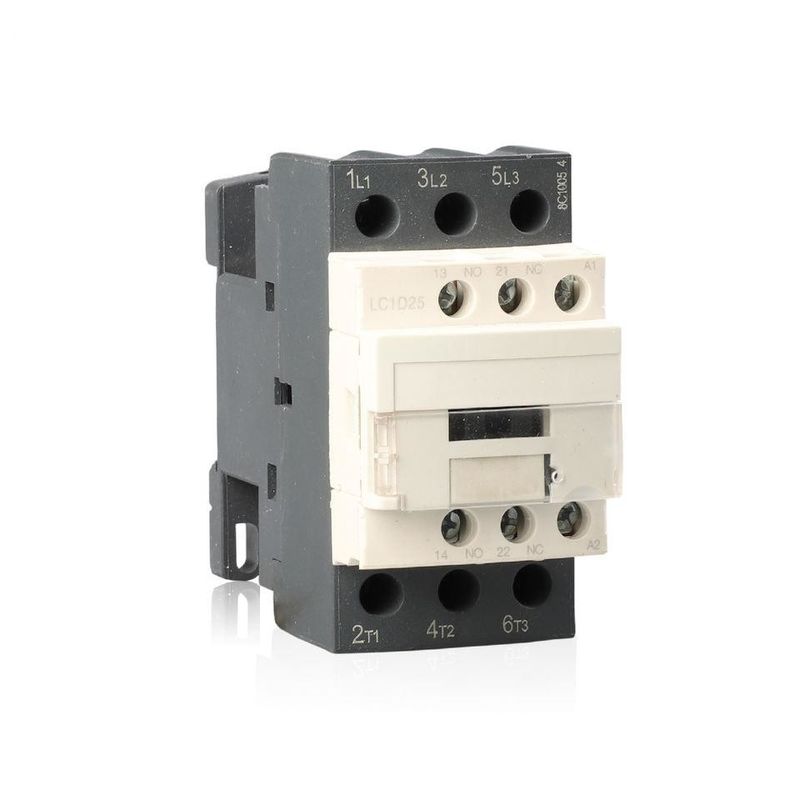

20A Coil Voltage Motor Starter Contactor AC220V/380V 3P+NO+NC Ac Magnetic

100PCS
MOQ
Negotiable
Price
20A Coil Voltage Motor Starter Contactor AC220V/380V 3P+NO+NC Ac Magnetic
Features Gallery Product Description Request A Quote
Features
Specifications
Phase: 3
Main Circuit Rating Voltage: 220V,480V
Electricity Type: AC
Type: AC Contactor
Frequency: AC 50/60Hz
Working Temperature: -5℃ To 40℃
High Light:

20A Ac Magnetic Electric Contactor

,

AC220V/380V AC Electric Contactor

,

Ac Magnetic Electric Contactor

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE,TUV,CB
Model Number: SC1-09,SC1-12, SC1-18,SC1-25, SC1-32
Payment & Shipping Terms
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

20A Coil Voltage AC220V/380V Motor Starter Contactor 3P+NO+NC Ac Magnetic Contactor



Features:
DIN rail Mounting.
AC Contactor is suitable for long-distance making and breaking circuit.
Frequently starting and controlling the AC motors.



Model and Implication:

20A Coil Voltage Motor Starter Contactor AC220V/380V 3P+NO+NC Ac Magnetic 0



Main parameters and Technical Performance:

Type SC1-09 SC1-12 SC1-18 SC1-25 SC1-32
Rated heating current (A) 20 20 25 32 40
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 1NO + 1NC
Short-time withstand current(A) 10S 72 96 144 200 256
AC-3
Rated working current(A)
220V/230V 9 12 18 25 32
380V/400V 9 12 18 25 32
660V/690V 6.5 8.9 12 18 22
AC-3 capacity of phase 3
squirrel-cage motor (AC-3) KW
220V/230V 2.2 3 4 5.5 7.5
380V/400V 4 5.5 7.5 11 15
660V/690V 5.5 7.5 10 15 18.5
Operation frequency (times/h) Electrical life 1200 600
Mechanical life 3600
AC-3 Electrical life (10000/times)   100 100 100 100 80
Mechanical life (10000/times) 1000 1000 1000 1000 800
Equipped fuse type RT16-20 RT16-20 RT16-32 RT16-40 RT16-50
Rated control supply voltage Us(V) 50/60Hz 12~480
Operation range Pull-in (85%~110%)Us +40℃
Releasing (20%~75%)Us -5℃
Ac coil average power(VA) Start 70 110
Keeping 8 11
Power efficiency class class 3
Thermal loss(W) 2~3 3~4
Actuation time(ms) Close 12~35
Break 5~20
Main circuit wiring flexible wire without cold
pressing terminal (㎟)
1 stick 1~4 1~4 1.5~6 1.5~10 2.5~10
2 sticks 1~4 1~4 1.5~6 1.5~6 2.5~10
flexible wire with cold
pressing terminal (㎟)
1 stick 1~4 1~4 1~6 1~6 1~10
2 sticks 1~2.5 1~2.5 1~4 1~4 1.5~6
Hard wire (㎟) 1 stick 1~4 1~4 1.5~6 1.5~6 1.5~10
2 sticks 1~4 1~4 1.5~6 1.5~6 2.5~10
Fastening screw size   M3.5 M4
Tightening fastening torque (N.m)   0.8 1.2
Control loop wiring flexible wire without cold
pressing terminal (㎟)
1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~4 1~4 1~4 1~4 1~4
flexible wire with cold
pressing terminal (㎟)
1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~2.5 1~2.5 1~2.5 1~2.5 1~2.5
Hard wire (㎟) 1 stick 1~4 1~4 1~4 1~4 1~4
2 sticks 1~4 1~4 1~4 1~4 1~4
Fastening screw size   M3.5
Tightening fastening torque (N.m)   0.8






Appearance and Installation Dimension:

20A Coil Voltage Motor Starter Contactor AC220V/380V 3P+NO+NC Ac Magnetic 1





Installation dimension:



Type A max B max C max a b
SC1-09~18 45 77 86 35 50/60 4.5
SC1-25~32 45 85 92 35 60/70 4.5
SC1-40~65 75 127 119 40 100/110 6.5
SC1-80~95 85 127 130 40 100/110 6.5


20A Coil Voltage Motor Starter Contactor AC220V/380V 3P+NO+NC Ac Magnetic 2

20A Coil Voltage Motor Starter Contactor AC220V/380V 3P+NO+NC Ac Magnetic 3

FAQ:

1. How long does it take to get a reply after sending an inquiry?

We will reply within 24 hours, even at the weekend or holidays.

2. Is OEM/ODM pack available?

Yes, OEM/ODM packs are welcome. We are professional on OEM/ODM work.

3.Do you offer samples if we want to test?

 Yes. We think that samples are very important for bulk orders. We can send samples.

4.Can I have a visit to your factory before the order?
A: Well Welcome! Our factory address: Yueqing City, Wenzhou, Zhejiang, China

5.If i want to release order, what's the payment method you accept ?
A: We accept T/T, Western union, L/C,etc.
