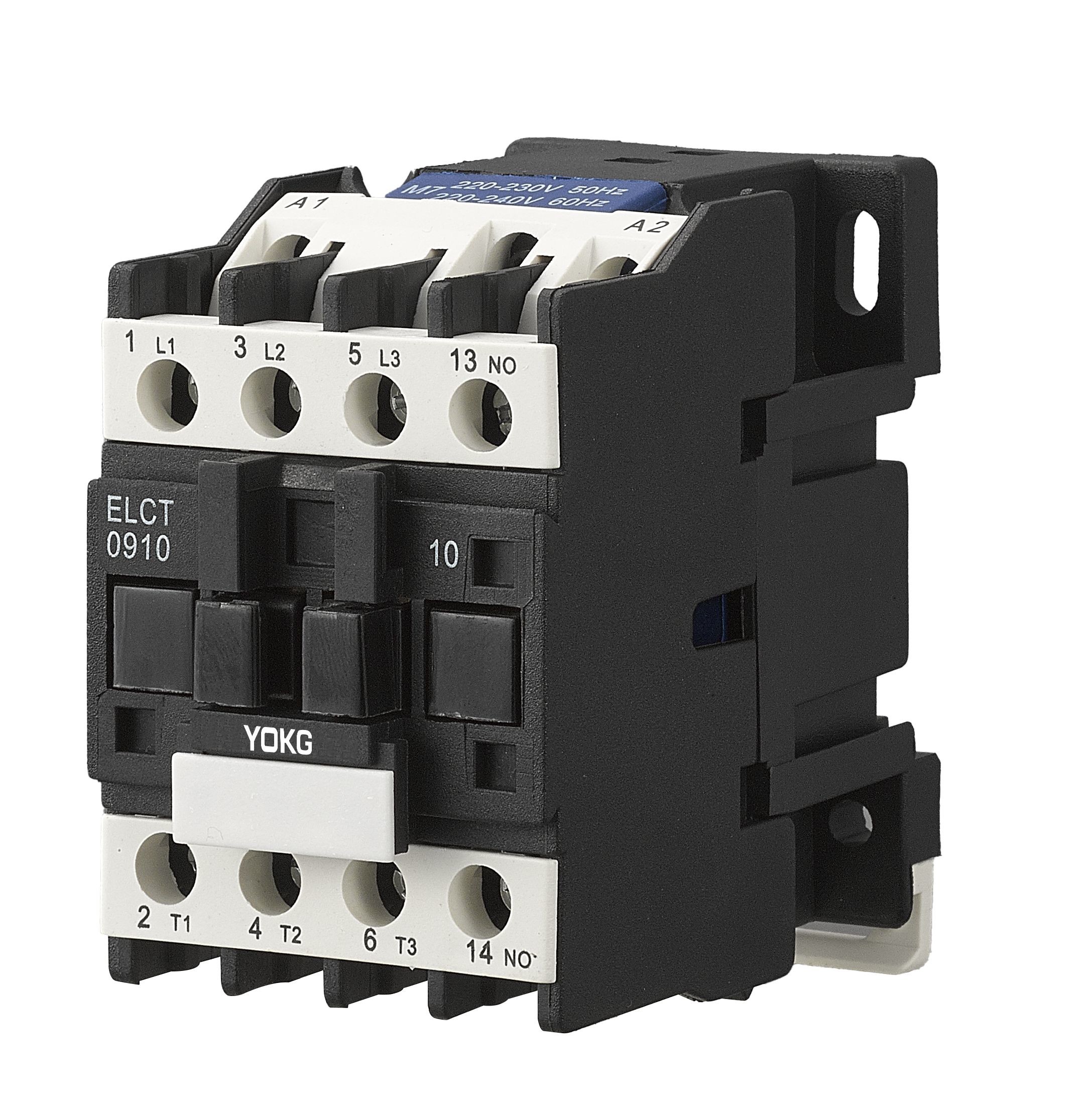

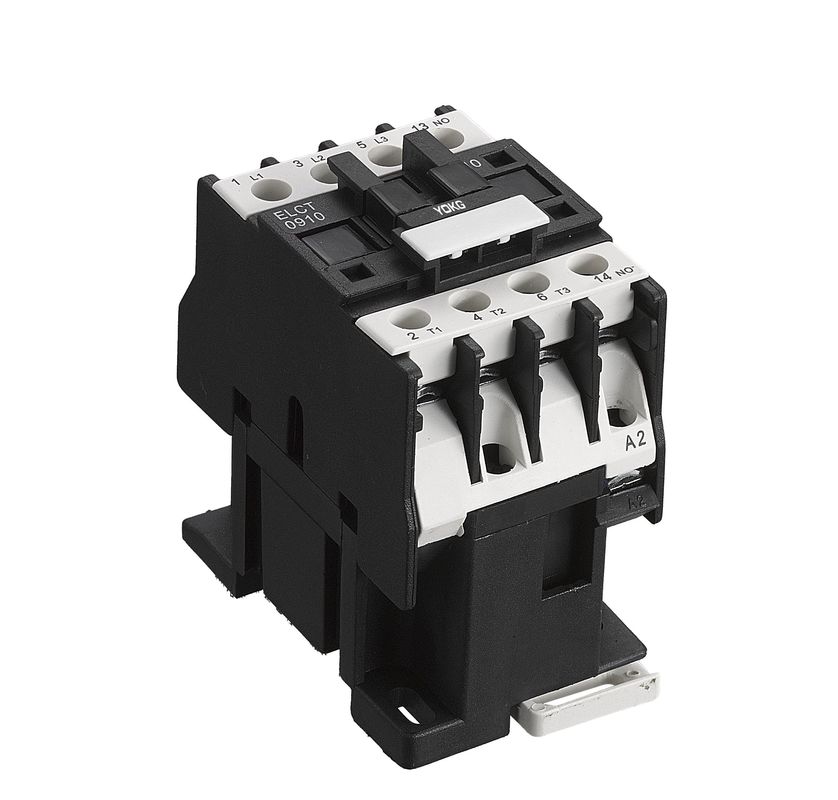

3 Poles 3 Phase 9A Silver Point Overload Contactor NO NC 230V Industrial Contactor
Application:
SC series AC contactor (hereinafter contactor) is suitable for using in the circuits up to the rated voltage 690V AC 50 HZ or 60 HZ , rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the thermal relay, it becomes the electromagnetic starter for protecting the overload circuits.
This series contactor complies with GB 14048, IEC60947-4-1
General:
Ambient air temperature: ≤-5℃--+40℃
Altitude: ≤ 2000m;
Pollution degree: Class 3
Installation category:III
Protection degree: IP20
Feature: Small volume, light weight, less power loss, long life, safe and reliability
Application: Auxiliary contacts block, time relay, current-limited contacts block, thermal relay, etc.
Installation: 35mm din rail (SC09~95), 75MM dil rail (SC40~95), screws
Model and Implication:
Main parameters and Technical Performance:
| Type | SC09 | ||
| Rated heating current (A) | 20 | ||
| Rated insulation voltage (V) | 690 | ||
| Rated impact withstand voltage (KV) | 6 | ||
| Rated making capacity | 10le | ||
| Rated breaking capacity | 8le | ||
| Poles | 3 | ||
| Auxiliary contact | NO/NC | ||
| Short-time withstand current(A) | 10S | 72 | |
| Rated working current(A) | 380V | AC-3 | 9 |
| AC-4 | 3.5 | ||
| 660V | AC-3 | 6.6 | |
| AC-4 | 1.5 | ||
| AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW |
220V | 2.2 | |
| 380V | 4 | ||
| 660V | 5.5 | ||
| Operation frequency (times/h) | Electrical life | AC-3 | 1200 |
| AC-4 | 300 | ||
| Mechanical life | 3600 | ||
| Electrical life (10000/times) | AC-3 | 100 | |
| AC-4 | 20 | ||
| Mechanical life (10000/times) | 1000 | ||
| Equipped fuse type | RT16-20 | ||
| Rated control supply voltage Us(V) | 50/60Hz | 12~480 | |
| Operation range | Pull-in | (85%~110%)Us +40℃ | |
| Releasing | (20%~75%)Us -5℃ | ||
| Ac coil average power(VA) | Start | 70 | |
| Keeping | 8 | ||
| Power efficiency class | class 3 | ||
| Thermal loss(W) | 2~3 | ||
| Actuation time(ms) | Close | 12~25 | |
| Break | 5~20 | ||
| Main circuit wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 |
| 2 sticks | 1～4 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | |
| 2 sticks | 1～2.5 | ||
| Hard wire (㎟) | 1 stick | 1~4 | |
| 2 sticks | 1～4 | ||
| Fastening screw size | M3.5 | ||
| Tightening fastening torque (N.m) | 0.8 | ||
| Control loop wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 |
| 2 sticks | 1～4 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | |
| 2 sticks | 1～2.5 | ||
| Hard wire (㎟) | 1 stick | 1～4 | |
| 2 sticks | 1～4 | ||
| Fastening screw size | M3.5 | ||
| Tightening fastening torque (N.m) | 0.8 |
||
Installation dimension:
| A max | B max | C max | a | b | ∅ |
| 57 | 86 | 95 | 40 | 48 | 4.5 |
