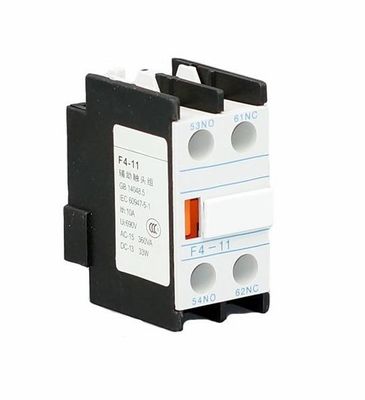

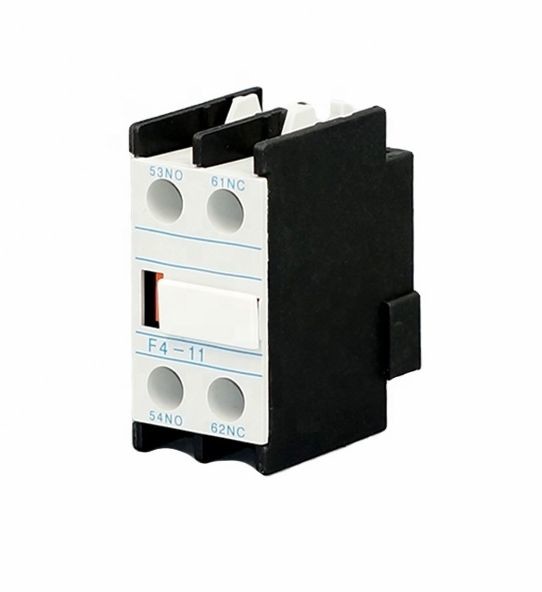

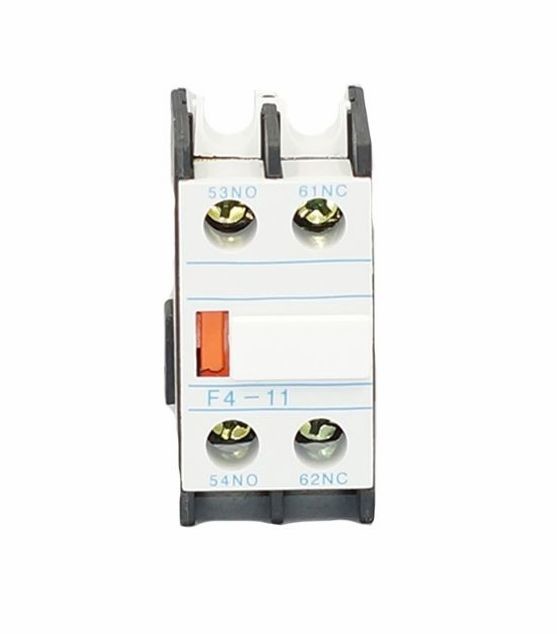

LA1 - DN11 NO NC AC Electric Contactor Auxiliary Contact Block 380V

LA1-DN11 NO NC AC Contactor Auxiliary Contact Block

Application:

   LA1-DN / F4 Series Auxiliary contact block can be mainly used in the controllable circuit of AC 50Hz/60Hz, AC-15,rated operational voltage 380V and rated up to 0.95A,or in DC-13,rated operational voltage DC220V and rated current up to .15A . It can be used to control Signal and Electrical linkage.

   This product is suitable for the conditions when CJX2 Series contactor has no enough auxiliary contact in controllable circuit,combining auxiliary contact block with CJX2 series contactor can increase number of auxiliary contacts.

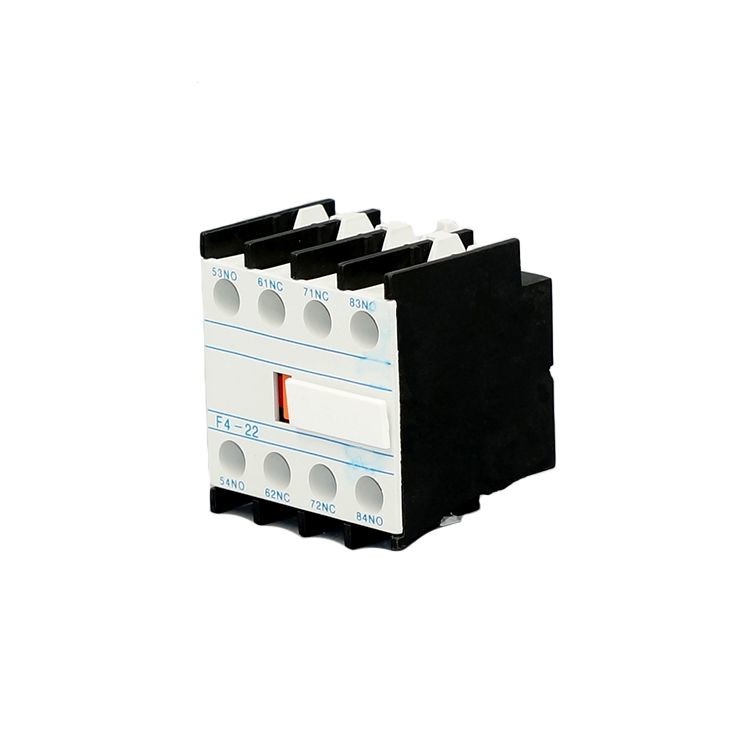

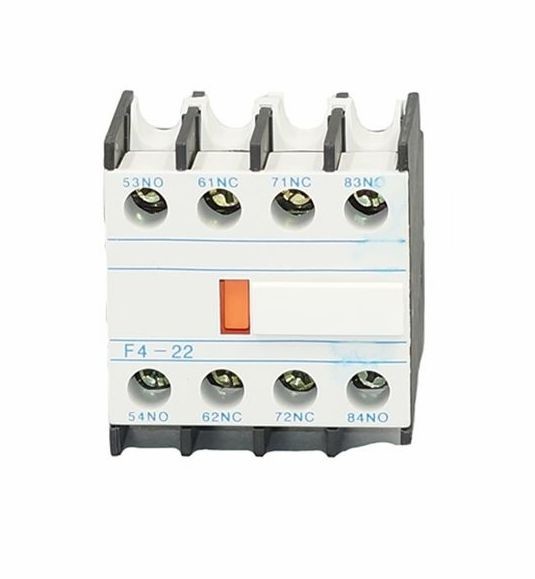

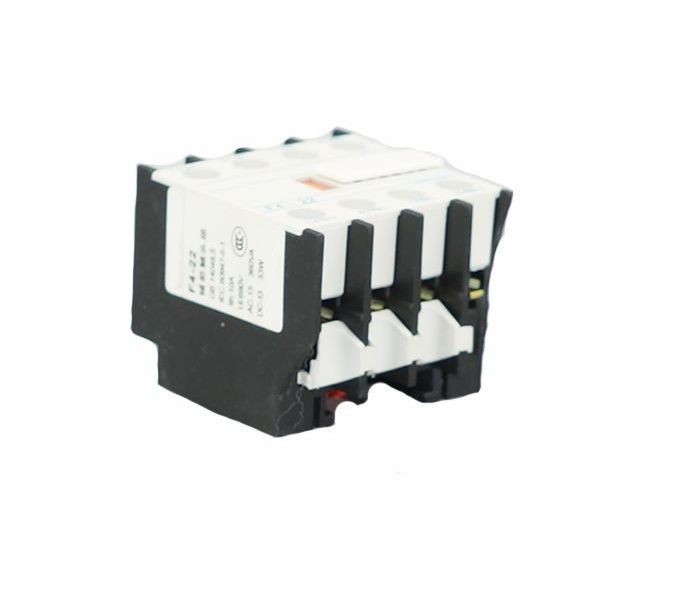

   It has two styles,one is two contact block,another is four contact block,the onle difference between them is the number of auxiliary contact.

   This product conforms to GB14048.4, IEC60947-4-1 standard.

Model and meaning:

Auxiliary Contact Block Usage:

Technical Parameter:
