Product Details:
|
| Rated Heating Current: | 50A,60A,80A,110A | Rated Insulation Voltage: | 220V,400V,690V |
|---|---|---|---|
| Auxiliary Contact: | 1NO+1NC | Protection Degree: | IP20 |
| Electricity Type: | AC | Number Of Poles: | 3 |
| Phase: | 3 | Place Of Origin: | Wenzhou, China |
| Main Circuit Rating Voltage: | Up To 6902V | ||
| High Light: | IEC60947 Telemecanique Magnetic Contactor SC1,SC180 Telemecanique Magnetic Contactor,IEC60947 AC Magnetic Contactor SC1 |
||

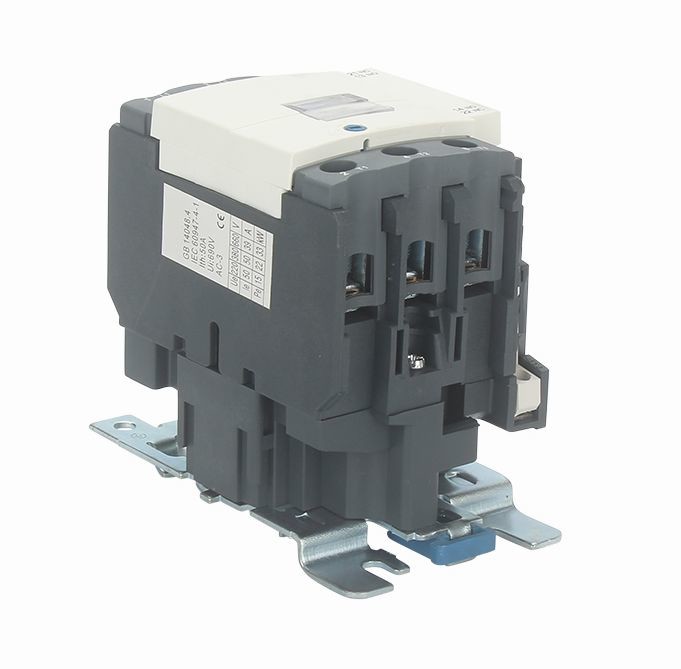

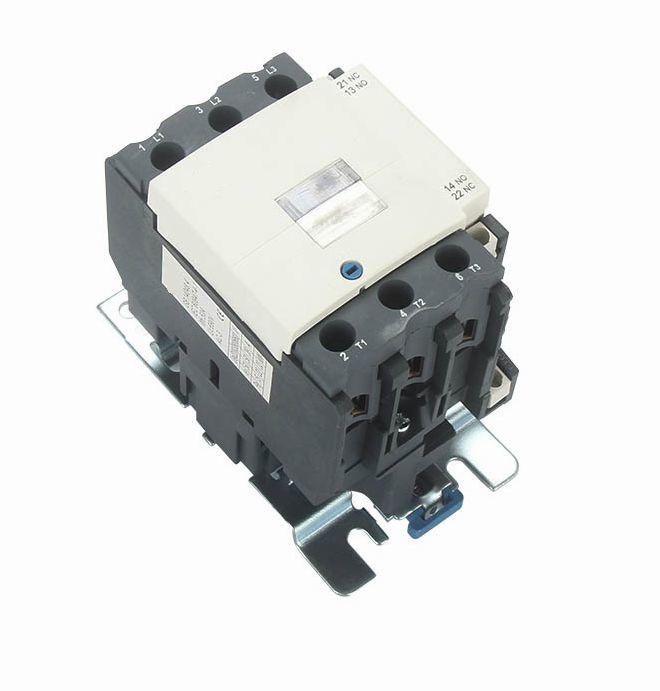

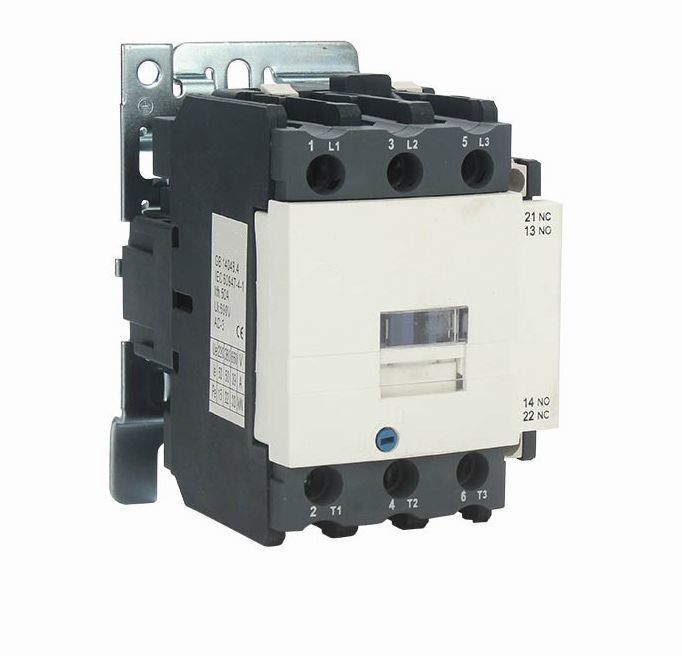

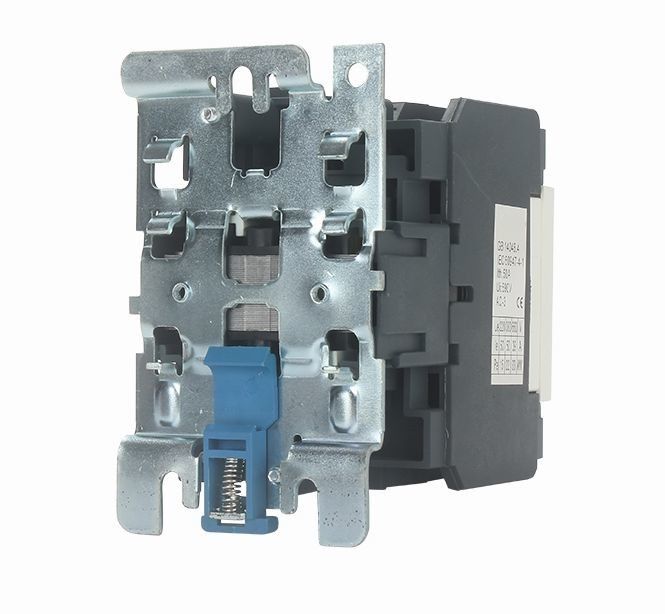

IEC60947 Telemecanique Contactor SC1-40~65 SC180~95 AC Magnetic Contactor
General:
Installation: Din rail / screw installation
Certification: CE,CB,TUV
Standard: IEC 60947-1, IEC 60947-4-1
Ambient temperature: -5℃~+40℃
Wiring capacity(mm): 1.5-35
Frequency: 50/60Hz
Altitude: ≤ 2000m
Pollution degree: Class 3
Installation category: III
Protection degree: IP20
Features: With dust cover design, contactor have characteristic of better safety, reliability and it also can extended service life.
They are in small volume, light weight, less power loss, long life and safe and reliability. Can be installed with auxiliary contacts block, time relay and current-limited contacts block, and thermal relay.
Model and Implication:
Main parameters and Technical Performance:
| Type | SC1-40 | SC1-50 | SC1-65 | SC1-80 | SC1-95 | ||
| Rated heating current (A) | 50 | 60 | 80 | 110 | 110 | ||
| Rated insulation voltage (V) | 690 | ||||||
| Rated impact withstand voltage (KV) | 6 | ||||||
| Rated making capacity | 10le | ||||||
| Rated breaking capacity | 8le | ||||||
| Poles | 3 | ||||||
| Auxiliary contact | 1NO + 1NC | ||||||
| Short-time withstand current(A) | 10S | 320 | 400 | 520 | 640 | 760 | |
| AC-3 Rated working current(A) |
220V/230V | 40 | 50 | 65 | 80 | 95 | |
| 380V/400V | 40 | 50 | 65 | 80 | 95 | ||
| 660V/690V | 34 | 39 | 42 | 49 | 49 | ||
| AC-3 capacity of phase 3 squirrel-cage motor (AC-3) KW |
220V/230V | 11 | 15 | 18.5 | 22 | 25 | |
| 380V/400V | 18.5 | 22 | 30 | 37 | 45 | ||
| 660V/690V | 30 | 33 | 37 | 45 | 45 | ||
| Operation frequency (times/h) | Electrical life | 600 | |||||
| Mechanical life | 3600 | ||||||
| AC-3 Electrical life (10000/times) | 80 | 60 | 60 | 60 | 60 | ||
| Mechanical life (10000/times) | 800 | 800 | 800 | 600 | 600 | ||
| Equipped fuse type | RT16-63 | RT16-80 | RT16-80 | RT16-100 | RT16-125 | ||
| Rated control supply voltage Us(V) | 50/60Hz | 12～480 | |||||
| Operation range | Pull-in | (85%～110%)Us +40℃ | |||||
| Releasing | (20%～75%)Us -5℃ | ||||||
| Ac coil average power(VA) | Start | 200 | |||||
| Keeping | 20 | ||||||
| Power efficiency class | class 3 | ||||||
| Thermal loss(W) | 6 ～10 | ||||||
| Actuation time(ms) | Close | 20 ～ 25 | 20 ～ 35 | ||||
| Break | 8 ～ 15 | 8 ～ 20 | |||||
| Main circuit wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 2.5～25 | 2.5～25 | 2.5～25 | 4～50 | 4～50 |
| 2 sticks | 2.5～16 | 2.5～16 | 2.5～16 | 4～25 | 4～25 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 2.5～25 | 2.5～25 | 2.5～25 | 4～50 | 4～50 | |
| 2 sticks | 2.5～10 | 2.5～10 | 2.5～10 | 4～16 | 4～16 | ||
| Hard wire (㎟) | 1 stick | 2.5～25 | 2.5～25 | 2.5～25 | 4～50 | 4～50 | |
| 2 sticks | 2.5～16 | 2.5～16 | 2.5～16 | 4～25 | 4～25 | ||
| Fastening screw size | M8 | M10 | |||||
| Tightening fastening torque (N.m) | 3.5 | 4 | |||||
| Control loop wiring | flexible wire without cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 |
| 2 sticks | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | ||
| flexible wire with cold pressing terminal (㎟) |
1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | |
| 2 sticks | 1～2.5 | 1～2.5 | 1～2.5 | 1～2.5 | 1～2.5 | ||
| Hard wire (㎟) | 1 stick | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | |
| 2 sticks | 1～4 | 1～4 | 1～4 | 1～4 | 1～4 | ||
| Fastening screw size | M3.5 | ||||||
| Tightening fastening torque (N.m) | 0.8 | ||||||
Appearance and Installation Dimension:
Installation dimension:
| Type | A max | B max | C max | a | b | ∅ |
| SC1-40～65 | 75 | 127 | 119 | 40 | 100/110 | 6.5 |
| SC1-80～95 | 85 | 127 | 130 | 40 | 100/110 | 6.5 |
