Product Details:
|
| Type: | Reversing Contactor | Certificate: | CE, CB, TUV |
|---|---|---|---|
| Coil Frequency: | 50/60 Hz | Electricity Type: | AC |
| Protection Degree: | IP20 | Uninterrupted Duty: | 20A, 32A,40A,50A,60A,80A,110A |
| OEM: | OEM Acceptable | Poles: | 4P |
| High Light: | Reversing 40 Amp AC Contactor,4P Contactor Electric 380V,60Hz 20 AMP Contactor 380V |
||
20A 40amp Reversing AC Contactor 380V 660V 4P In Good Price
The reversing contactor can be built by combining two standard contactors by use of a mechanical interlock unit. Reversing contactors are designed for demanding forward/reverse operating of three-phase AC motors. Reversing contactors are ideal for reversing motors in applications where panel space is a premium and device modularity is required to satisfy virtually any application requirement. Reversing AC Contactor consists of an assembly of standard contactors along with interlock & wiring modules, these are assembled in the form for direct application as reversing contactor and to be used in a panel or an enclosure.
Main parameters and Technical Performance:
| Type | Ui (V) | Ue(V) | Ith(A) | Intermittent periodic | AC-4 Pe (kW) | Uninterrupted |
| duty-type AC-4 le (A) | duty le (A) | |||||
| SC09N | 660 | 380 | 20 | 3.5 | 1.5 | 20 |
| 660 | 1.5 | 1.1 | ||||
| SC12N | 380 | 20 | 5 | 2.2 | 20 | |
| 660 | 2 | 1.5 | ||||
| SC18N | 380 | 32 | 7.7 | 3 | 32 | |
| 660 | 3.8 | 3.7 | ||||
| SC25N | 380 | 40 | 8.5 | 4 | 40 | |
| 660 | 4.4 | 4 | ||||
| SC32N | 380 | 50 | 12 | 5.5 | 50 | |
| 660 | 7.5 | 5.5 | ||||
| SC40N | 380 | 60 | 18.5 | 7.5 | 60 | |
| 660 | 9 | 7.5 | ||||
| SC50N | 380 | 80 | 24 | 11 | 80 | |
| 660 | 12 | 11 | ||||
| SC65N | 380 | 80 | 28 | 15 | 80 | |
| 660 | 14 | 11 | ||||
| SC80N | 380 | 110 | 37 | 18.5 | 110 | |
| 660 | 17.3 | 15 | ||||
| SC95N | 380 | 110 | 44 | 22 | 110 | |
| 660 | 21.3 | 18.5 |

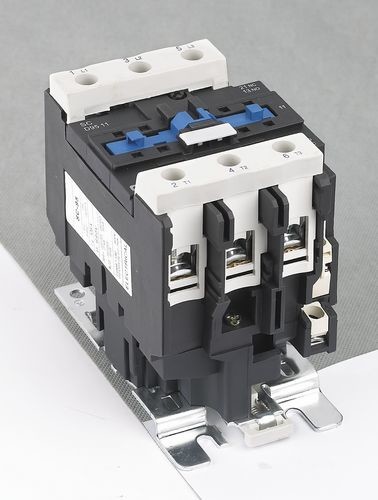

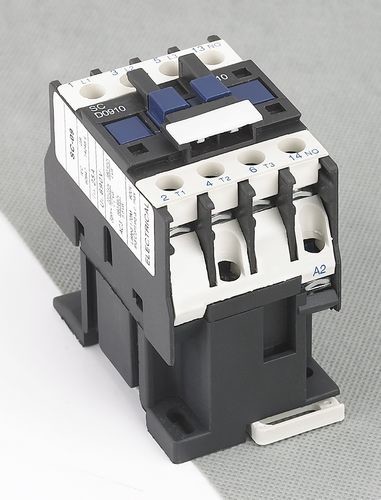

Appearance and Installation Dimension:
Installation dimension:
| Type | a | b | c | g | h | ∅ |
| SC09～12N | 78 | 105 | 82 | 95 | - | 4.5 |
| SC18N | 78 | 105 | 87 | 95 | - | 4.5 |
| SC25N | 90 | 125 | 95 | 111 | - | 4.5 |
| SC32N | 90 | 125 | 100 | 111 | - | 4.5 |
| SC40～65N | 129 | 165 | 116 | 50 | 90 | 6.5 |
| SC80～95N | 129 | 165 | 127 | 57 | 96 | 5 |
Packing and Delivery:
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
