Product Details:
|
| Rated Heating Current: | 50A, 60A, 80A, 100A, 110A, 135A | Poles: | 3 |
|---|---|---|---|
| Standard: | IEC60947-4-1, GB14048.4 | Auxiliary Contact: | 2NC+2NO |
| Type: | AC Contactor | Operation Frequency Of Electrical Life: | 1200 |
| Color: | White | Certificate: | CE, CB, TUV |
| High Light: | GC 32 3 Phase AC Electric Contactor,2NC 2NO AC Electric Contactor GB14048.4,GC 32 3 GB14048.4 Contactor |
||

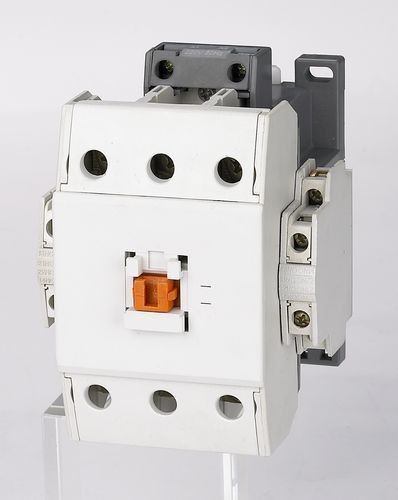

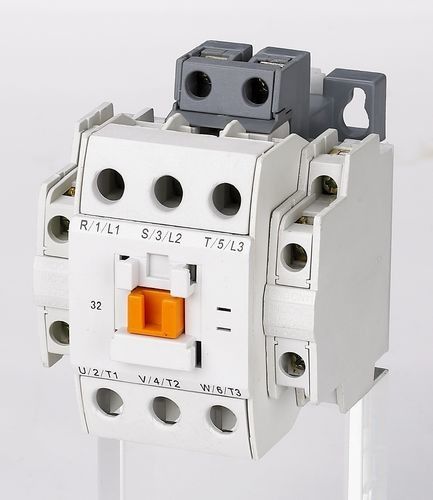

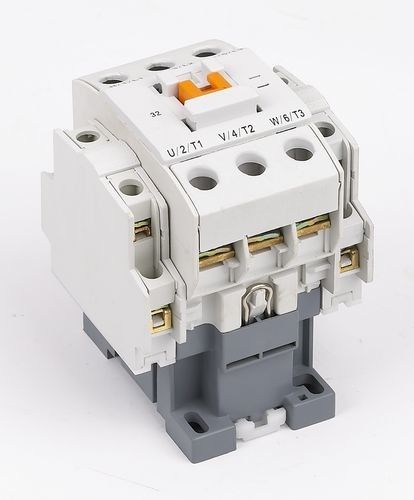

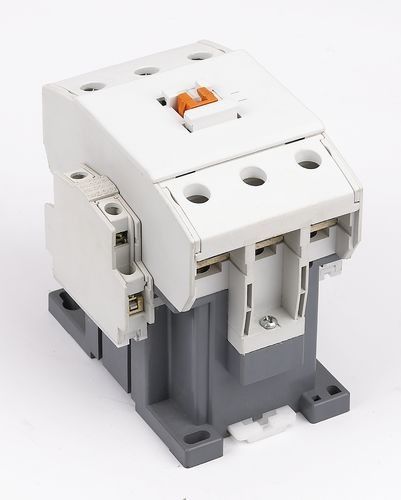

IEC60947 2NC+2NO 3 Pole AC 3 Poles Contactor GC-32,40, 50～85 100A White Color Contactor
Production description:
GC AC contactor mainly applies to the circuit of AC 50/60Hz,and rated insulation voltage 660V,rated operating voltage up to
690V. When used in AC-3, rated operational voltage 380V and rated current up to 9A,for long distance breaking circuit and
frequency starting or control the motor.
Main parameters and Technical Performance:
| Type | GC-32 | GC-40 | GC-50 | GC-65 | GC-75 | GC-85 | ||
| Rated heating current (A) | 50 | 60 | 80 | 100 | 110 | 135 | ||
| Rated insulation voltage (V) | 690 | |||||||
| Rated impact withstand voltage (KV) | 6 | |||||||
| Rated making capacity | 10le | |||||||
| Rated breaking capacity | 8le | |||||||
| Poles | 3 | |||||||
| Auxiliary contact | 2NC+2NO | |||||||
| Short-time withstand current(A) | 10S | 256 | 320 | 400 | 520 | 600 | 680 | |
| IEC-60947 | AC1 Load | 50 | 60 | 80 | 100 | 110 | 135 | |
| AC3 Load power |
200～240V | 7.5KW | 11KW | 15KW | 18.5KW | 22KW | 25KW | |
| 380～440V | 15KW | 18.5KW | 22KW | 30KW | 37KW | 45KW | ||
| 500～550V | 18.5KW | 22KW | 30KW | 33KW | 37KW | 45KW | ||
| 690V | 18.5KW | 22KW | 30KW | 33KW | 37KW | 45KW | ||
| AC3 Load current |
200～240V | 32A | 40A | 55A | 65A | 75A | 85A | |
| 380～440V | 32A | 40A | 50A | 65A | 75A | 85A | ||
| 500～550V | 28A | 32A | 43A | 60A | 64A | 75A | ||
| 690V | 20A | 23A | 28A | 35A | 42A | 45A | ||
| UL508 | Continuous current | 45A | 50A | 70A | 80A | 90A | 100A | |
| single-phase machine |
115V | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | |
| 230V | 5HP | 5HP | 7.5HP | 10HP | 15HP | 15HP | ||
| Three-phase machine |
200V | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | |
| 230V | 10HP | 10HP | 15HP | 20HP | 25HP | 30HP | ||
| 460V | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
| 575V | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
| Operation frequency (times/h) | Electrical life | 800 | 600 | |||||
| Mechanical life | 3600 | |||||||
| AC-3 Electrical life (10000/times) | 80 | 80 | 60 | 60 | 60 | 60 | ||
| Mechanical life (10000/times) | 800 | 800 | 600 | 600 | 600 | 600 | ||
Installation dimension:
Certificates:
Packing and Delivery:
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, OEM and ODM are available.
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
