Product Details:
|
| Volt: | Max AC 690V | Connecting System: | Crimp Connection |
|---|---|---|---|
| Gender: | Silver Point | Amp: | 6A To 150A |
| Function: | Used To AC | Electricity Type: | AC |

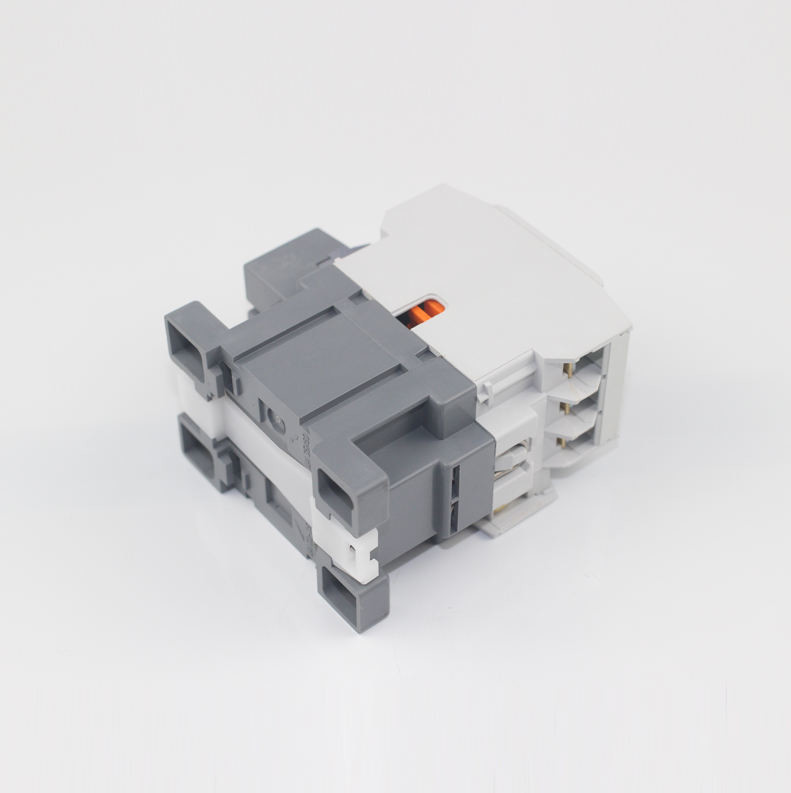

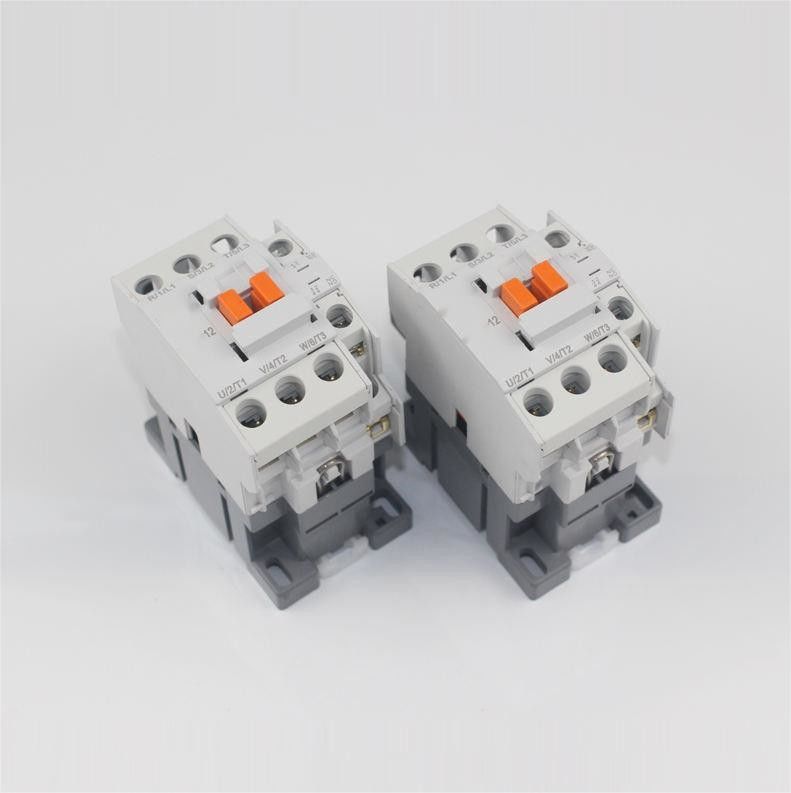

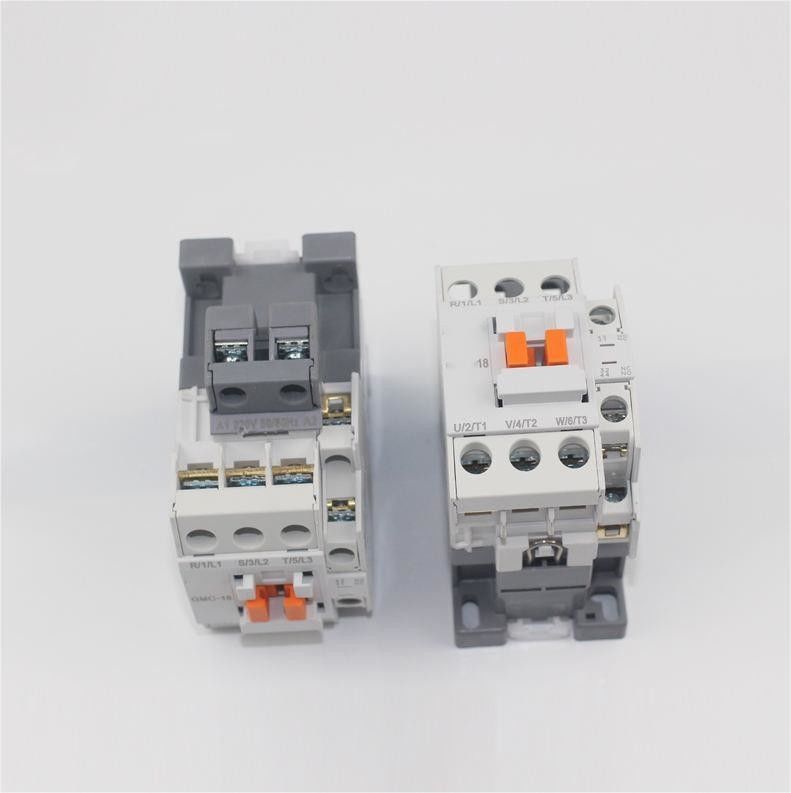

3P Switch AC Power Contactor With CE 230V 18A Single Phase 110V
Features:
♦ This GMC AC contactor with a clear dust cover for protection and more pretty
♦ Combined with the auxiliary contact block,timer delay and mechanical interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, stardelta starter
♦ With the thermal relay ,it combined into the electromagnetic starter
♦ Full set accessories
Applicable Working:
| Ambient temperature | -5~+40℃, the average value cannot exceed to +35℃ within 24h |
| Altitude | ≤2,000m |
| Relative humidity | ≤95% |
| Pollution level | II |
| Installation location | Mount on the place where has no obvious vibration or impact |
| Type | GC-9 | GC-12 | GC-18 | GC-22 | ||
| Rated heating current (A) | 25 | 25 | 40 | 40 | ||
| Rated insulation voltage (V) | 690 | |||||
| Rated impact withstand voltage (KV) | 6 | |||||
| Rated making capacity | 10le | |||||
| Rated breaking capacity | 8le | |||||
| Poles | 3 | |||||
| Auxiliary contact | 1NC+1NO | |||||
| Short-time withstand current(A) | 10S | 72 | 96 | 144 | 196 | |
| IEC-60947 | AC1 Load | 25 | 25 | 40 | 40 | |
| AC3 Load power |
200～240V | 2.5KW | 3.5KW | 4.5KW | 5.5KW | |
| 380～440V | 4KW | 5.5KW | 7.5KW | 11KW | ||
| 500～550V | 4KW | 7.5KW | 7.5KW | 15KW | ||
| 690V | 4KW | 7.5KW | 7.5KW | 15KW | ||
| AC3 Load current |
200～240V | 11A | 13A | 18A | 22A | |
| 380～440V | 9A | 12A | 18A | 22A | ||
| 500～550V | 7A | 12A | 13A | 18A | ||
| 690V | 5A | 9A | 9A | 32A | ||
| UL508 | Continuous current | 20A | 25A | 30A | 32A | |
| single-phase machine |
115V | 0.5HP | 0.5HP | 1HP | 2HP | |
| 230V | 1HP | 2HP | 3HP | 3HP | ||
| Three-phase machine |
200V | 2HP | 3HP | 5HP | 7.5HP | |
| 230V | 2HP | 3HP | 5HP | 7.5HP | ||
| 460V | 5HP | 7.5HP | 10HP | 10HP | ||
| 575V | 7.5HP | 10HP | 15HP | 15HP | ||
| Operation frequency (times/h) | Electrical life | 1200 | ||||
| Mechanical life | 3600 | |||||
| AC-3 Electrical life (10000/times) | 100 | 100 | 100 | 100 | ||
| Mechanical life (10000/times) | 1000 | 1000 | 1000 | 1000 | ||
Certificates:
FAQ:
1. What advantage do you have?
We are the manfacturer and we have more than 20 years experience in foreign trade
2. Can we print our logo/website/company name on products?
Yes, our company are available for retail&wholesale &OEM
3. Which market do you already sell ?
We already ship to many South America, African countries, Middle East, Southeast Asia etc.
4. Do you inspect the finished products?
Our products100% self-inspection and testing before packing
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy .
6. What is the standard of package?
Export standard package or special package according to customer
7. What's the production ability?
4HQ containers monthly and rush order for any quantity
