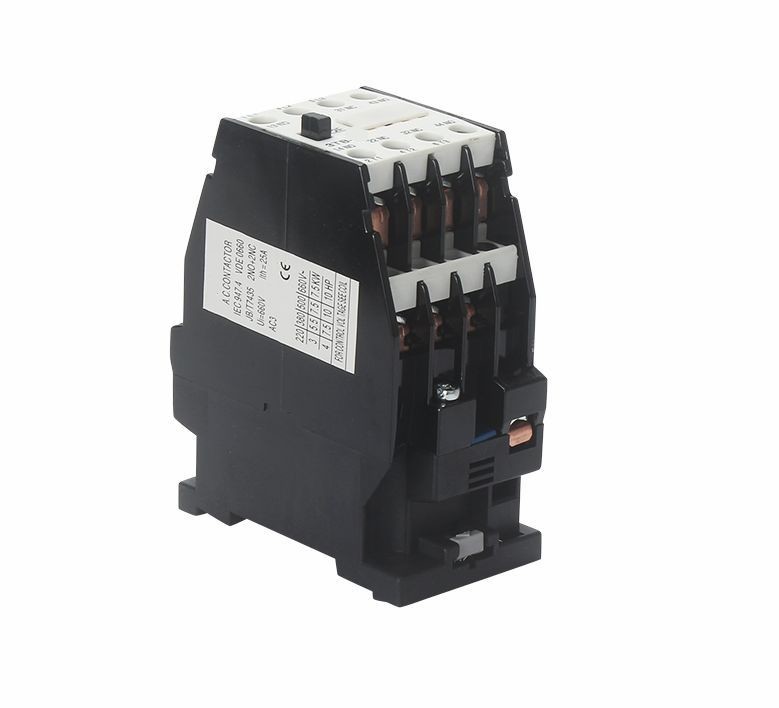

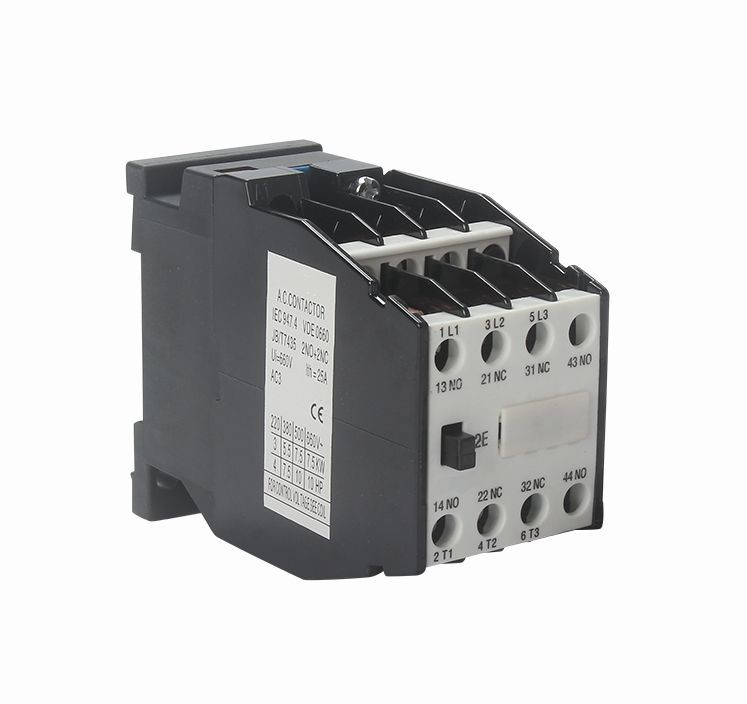

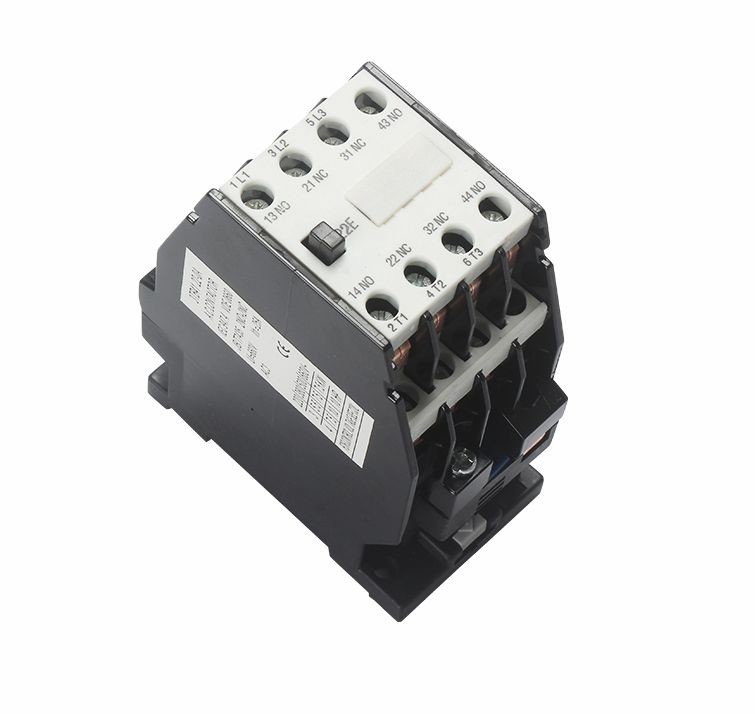

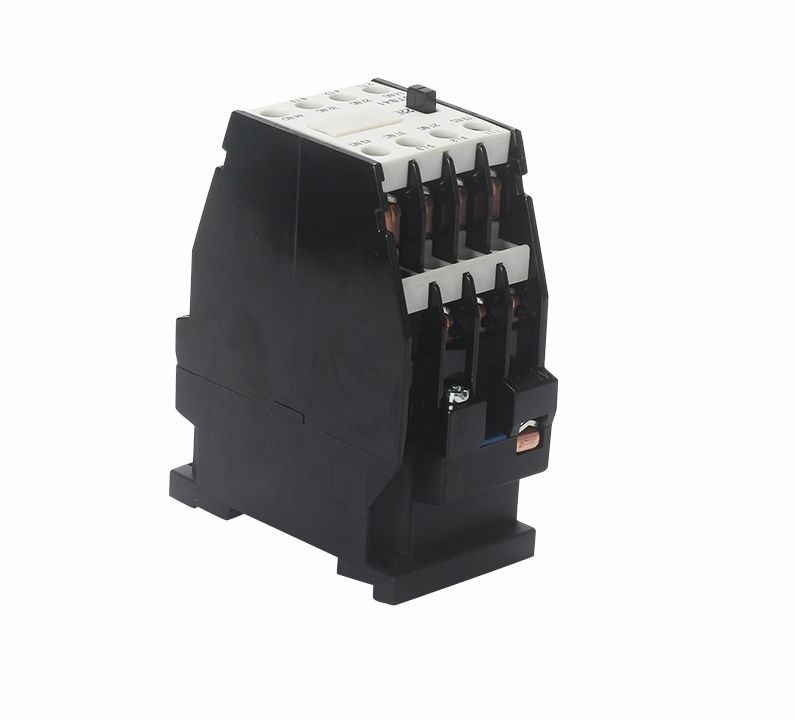

50Hz AC Electric Contactor 3 Phase

100PCS
MOQ
Negotiable
Price
50Hz AC Electric Contactor 3 Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Temperature Range: -5℃--+40℃
Poles: 3P
Auxiliary Contact: 2NO+2NC
Type: Magnetic Contactor
Color: White
Certificate: CE, CB, TUV
Coil Frequency: 50/60 Hz
Electricity Type: AC
Phase: 3
Place Of Origin: Wenzhou, China
High Light:

50Hz AC Electric Contactor

,

AC Electric Contactor 3 Phase 20A

,

50Hz 2NO 2NC Contactor

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE,TUV,CB
Model Number: SBC40~41, SBC42~43, SBC44
Payment & Shipping Terms
Packaging Details: Each unit be packed in one individual inner box
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

2021 AC Magnetic Contactor 50Hz 60 Hz 20 Amp For Industrial Use



Product Details:

Installation Din rail / screw installation
Certification CE,CB,TUV
Standard IEC 60947-1, IEC 60947-4-1
Machanical Life 800-1000
Ambient temperature -5℃~+40℃
Phase 3
Coil frequency 50  / 60 Hz



Main parameters and Technical Performance:

Type SBC40 SBC41 SBC42 SBC43 SBC44
Rated heating current (A) 20 20 30 30 45
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC 2NO+2NC
Short-time withstand current(A) 10S 72 96 128 176 256

Rated working current(A)
380V AC-3 9 12 16 22 32
AC-4 3.3 4.3 7.7 8.5 15.6
Controllable motor power (KW)
50Hz
AC-3 220V 2.4 3.3 4 6.1 8.5
380V 4 5.5 7.5 11 15
500V 5.5 7.5 10 11 21
660V 5.5 7.5 11 11 23
AC-4 380V 1.4 1.9 3.5 4 7.5
660V 2.4 3.3 6 6.6 13
Operation frequency (times/h) AC-3 1200 1200 1200 1200 600
AC-4 300 300 300 300 300
Electrical life (10000/times) AC-3 100 100 100 100 80
AC-4 20 20 20 20 20
Mechanical life (10000/times) 1000 1000 1000 1000 800
Attracting Coil working voltage tolerance (AC) (85%~110%)Us +40℃
Attracting Coil power consumption Keeping (VA) 10 10 10 10 10
Pick-up(VA) 68 68 68 68 69
Auxiliary contact conventional thermal current(A) 10 10 10 10 10
Auxiliary contact rated insulation voltage (V) 660 660 660 660 660
Auxiliary contact rated working current (A) AC-15 380V 6 6 6 6 4
220V 10 10 10 10 6
DC-13 110V 0.9 0.9 0.9 0.9 1.8
220V 0.45 0.45 0.45 0.45 0.9







Installation dimension:

Type A max B max C max a b
SBC40 46 79 106 35 60 4.8
SBC41
SBC42 46 89 116 35 75 4.8
SBC43
SBC44 74 90 109 50 75 5





Packing and Delivery:





50Hz AC Electric Contactor 3 Phase 0



50Hz AC Electric Contactor 3 Phase 1

FAQ:

1. Could I have prices of your products?

Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.



2. Can we print our logo/website/company name on products?

Yes, OEM and ODM are available.



3. What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.



4. Do you inspect the finished products?

Our products 100% self-inspection and testing before packing.



5. How about payment terms?

30% deposit, the rest payment balance against B/L copy.
