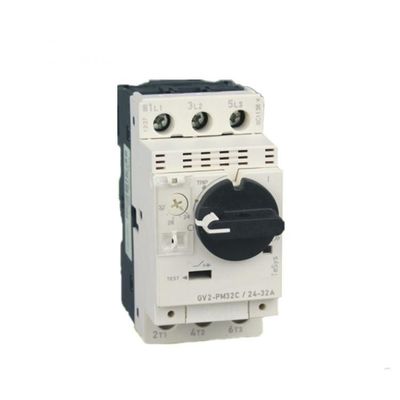

MPCB Motor Protector Circuit Breaker Rotary Button GV2 With Amp GV2-P

100PCS
MOQ
Negotiable
Price
MPCB Motor Protector Circuit Breaker Rotary Button GV2 With Amp GV2-P
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GV2-PM08C 2.5-4A Motor Protector
BCD Curve: B
Type: Breaker
Rated Voltage: 4a
Place Of Origin: Zhejiang, China
Poles Number: 3
High Light:

MPCB Motor Protector Circuit Breaker

,

Rotary Button GV2 MPCB Breaker

,

MPCB Breaker With Amp GV2-P

Basic Infomation
Place of Origin: China
Brand Name: YOKG
Certification: CE
Model Number: GV2-P
Payment & Shipping Terms
Packaging Details: Standard export packing or According to customer's demand
Delivery Time: 15days or Depends on ordering QTYS
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000pcs per Month
Product Description

Circuit Breaker Rotary Button GV2 Motor Protector MPCB With Different Amp GV2-P

Application:

GV-2P Series electric motor protection circuit breaker,uses the modular design,the contour is artistic,the volume is small,breaks protects,inside sets Hot Relay,the function is strong,the versatility is good.



GV-2P Series motor protection circuit breaker are mainly used for the overload and short-circuit protection for motors ins

the circuit of AC50/60Hz,rated operating voltage up to 690V,rated operating current from 0.1A to 32A.As overload, phase failure, short circuit protection and infrequent start control of three-phase motors, it can be used for distribution line protection and infrequent load conversion, and can also be used as an isolator.



Air switch of the motor

GV2-M, GV2-ME, GV2-P GV2-RS GV2-LS, GV2-LE
M01C 0.1-0.16 RS01C 0.1 -0.16
M02C 0.16-0.25 RS02C 0.16-0.25
M03C 0.25 - 0.40 RS03C 0.25 - 0.40 LS03 0 25-0.40
M04C 0.40- 0.63 RS04C 0.40- 0.63 LS04 0 40-0.63
M05C 0.63 - 1 RS05C 0.63-1 LS05 0.63 -1
M06C 1-1.6 RS06C 1-1.6 LS06 1-1.6
M07C 1.6-2.5 RS07C 1.6-2.5 LS07 1.6-2.5
M08C 2 5-4 RS08C 25-4 LS08 2.5-4
M10C 4-6.3 RS10C 4 - 6.3 LS10 4-6.3
M14C 6-10 RS14C 6-10 LS14 6-10
M16C 9-14 RS16C 9-14 LS16 9-14
M18C 10-16 RS18C 10-16 LS8 10-16
M20C 13-18 RS20C 13-18 LS20 13-18
M21C 17-23 RS21C 17-23 LS21 17-23
M22C 20-25 RS22C 20-25 LS22 20-25
M32C 24-32 RS32C 24-32



The rated power of three-phase electromtor controlled by breaker(GV2 motor circuit bereaker)

The adjusting range of rated current ie(a) The standard power of three-phase electromotor KW.AC-350HZ/60HZ
230/240V 400V 415V 440V 500V 690V
0.1-0.16 - - - - - -
0.16-0.25 - - - - - -
0.25 - 0.4 - - - - - -
040- 0.63 - - - - - 0.37
0.63 -1 - - - 0.37 0.37 0.55
1 - 1.6 - 0.37 - 0.55 0.75 1.1
1.6-2.5 0.7 0.75 0.75 1.1 1.1 1.5
2.5-4 0.75 1.5 1.5 1.5 22 3
4-6.3 1.1 2.2 2.2 3 37 4
6-10 2.2 4 4 4 5.5 7.5
9-14 3 5.5 5.5 7.5 7.5 9
13-18 4 7.5 9 9 9 11
17-23 5.5 11 11 11 11 15
20-25 5.5 11 11 11 15 18.5
24-32 7.5 15 15 15 185 23



The disjointnig current commuting value of breaker in instant magnetic field.(Refer to table 3)

Rated current I nA The adjusting range commuting current for coponents A. The drsjointing current commutrng value in instant field I nA
0.16 0.1 -0.16 1.5
0.25 0.16-0.25 2.4
0.4 0.25 - 0.4 5
0.63 0.4 - 0 63 8
1 0.63-1 13
1.6 1 -1.6 22.5
2.5 1.6-2.5 33.5
4 2.5-4 51
6.3 4-6.3 78
10 6-10 138
14 9-14 170
18 13-18 223
23 17-23 327
25 20-25 327
32 24-32 416



MPCB Motor Protector Circuit Breaker Rotary Button GV2 With Amp GV2-P 0

MPCB Motor Protector Circuit Breaker Rotary Button GV2 With Amp GV2-P 1






Packing and Delivery:


MPCB Motor Protector Circuit Breaker Rotary Button GV2 With Amp GV2-P 2

MPCB Motor Protector Circuit Breaker Rotary Button GV2 With Amp GV2-P 3

FAQ:

Q1: Are you a factory or trading company

A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.

Q2: How does your factory do regarding quality control?

A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?

A3:Usually we quote within 24 hours after we get your inquiry.

Q4: What is the price of shipping?

A4: Depending upon the port of delivery, prices varies.
